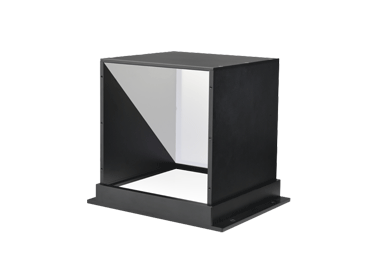

CompaVis®

CV-BKCX-B Series

▪ This "Simulated Coaxial Illumination"can obtain uniform coaxial epi-illumination for wide FOV of "MTL Series".

▪ It can use CompaVis backlight "CV - FL Series" "CV - NFL Series" as light source.

• Model Name
• Color
• Power(W)
• External Diameter(mm)
• Internal Diameter(mm)
• External Dimensions (height) (mm)

• CV-BKCX-100G-B
• Green
• 9.9
• 139
• 154
• 128

• CV-BKCX-100W-B
• White
• 9.9
• 139
• 154
• 128

• CV-BKCX-135G-B
• Green
• 21.7
• 189
• 204
• 178

• CV-BKCX-135W-B
• White
• 21.7
• 189
• 204
• 178

• CV-BKCX-195G-B
• Green
• 24.4
• 287
• 284
• 274

• CV-BKCX-195W-B
• White
• 24.4
• 287
• 284
• 274
