Product
Light Guides Accessories
Light Guides
Condenser Lenses Filter Holder Filters Straight Light Guide Polarizing Filter Side-illumination Adapter Light Guide Coupling Adapters Quartz Adapters Ring Light Guide Diffusers Internal Diameter Adapters Quartz UV Light Guides Accessories

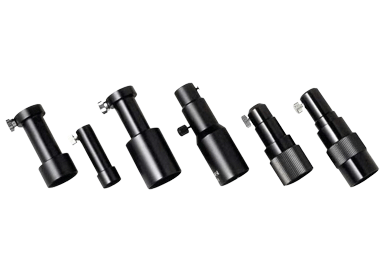

Condenser Lenses

  • Model Name
  • Features
  • ML-40
  • Dedicated thin diameter type (SD).
  • ML-30
  • For straight/ bifurcated light guides.
  • ML-50
  • Approximately double illuminance for ML‐ 30
  • ML-70
  • Uses two groups of two lenses. Focuses light on uniform and comparatively small spot light.
  • MLZ-100
  • Uniform spot light at each working distance. Helicoid-based focal point adjustment mechanism.
  • MLK-50
  • Cylindrical lens able to be connected to MKG50
  • MLP-180
  • Cylindrical lens able to be connected to MKG180 and MKP180

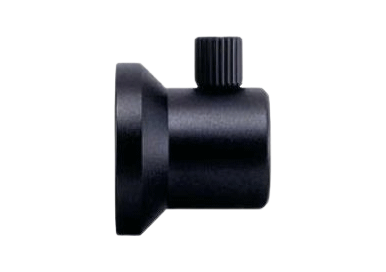

Filter Holder

  • Model Name
  • Description

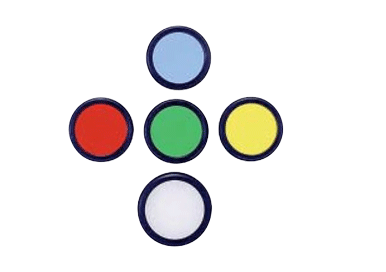

Filters

  • Model Name
  • Description
  • MLF-10**
  • Color temperature conversion filter for FAF10
  • MLF-20**
  • Color filters (set of red, green and yellow) for FAF10

Straight Light Guide Polarizing Filter

  • Model Name
  • Description
  • ME-01**
  • Polarization filter for FAF10

Side-illumination Adapter

  • Model Name
  • Description
  • MQ-01
  • Light guide lateral illumination adapter

Light Guide Coupling Adapters

  • Model Name
  • Description
  • MAD-01
  • Light guide middle lens tube

Quartz Adapters

  • Model Name
  • Description

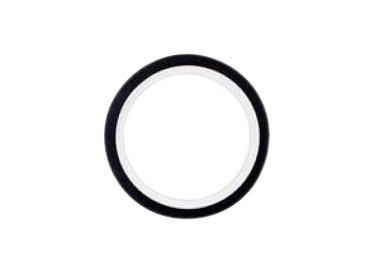

Ring Light Guide Diffusers

  • Model Name
  • 配件
  • 适用型号
  • 详情
  • MK-03
  • Diffusion filter
  • MRG-48
  • By using this in a set with the light output side of a ring light guide, it is possible to reduce nonuniform illumination and obtain a soft lighting effect.
  • MK-04
  • Diffusion filter
  • MRG-53
  • By using this in a set with the light output side of a ring light guide, it is possible to reduce nonuniform illumination and obtain a soft lighting effect.
  • MK-05
  • Diffusion filter
  • MRG-61
  • By using this in a set with the light output side of a ring light guide, it is possible to reduce nonuniform illumination and obtain a soft lighting effect.
  • MK-06
  • Diffusion filter
  • MRG-75
  • By using this in a set with the light output side of a ring light guide, it is possible to reduce nonuniform illumination and obtain a soft lighting effect.
  • MK-02
  • Diffusion filter
  • MRG-31
  • By using this in a set with the light output side of a ring light guide, it is possible to reduce nonuniform illumination and obtain a soft lighting effect.

Internal Diameter Adapters

  • Model Name
  • 配件
  • 适用型号
  • 详情
  • MS-03-****
  • Internal diameter adapter
  • MRG-48
  • This is an internal diameter adapter for ring light guides. Feel free to specify the internal diameter value for **. The internal diameter tolerance is **+0.1+0.
  • MS-04-****
  • Internal diameter adapter
  • MRG-53
  • This is an internal diameter adapter for ring light guides. Feel free to specify the internal diameter value for **. The internal diameter tolerance is **+0.1+0.
  • MS-05-****
  • Internal diameter adapter
  • MRG-61
  • This is an internal diameter adapter for ring light guides. Feel free to specify the internal diameter value for **. The internal diameter tolerance is **+0.1+0.
  • MS-02-****
  • Internal diameter adapter
  • MRG-31
  • This is an internal diameter adapter for ring light guides. Feel free to specify the internal diameter value for **. The internal diameter tolerance is **+0.1+0.

Quartz UV Light Guides Accessories

  • Model Name
  • Description
