Application

Li-battery manufacturing
and inspection equipment

Lithium battery manufacturing equipment often implements multiple processes on a single machine. Some of the processes that take place in a machine are coating, lamination, cutting and stamping, assembly, charge, and discharge test of electrode materials.
During the coating process, the machine evenly coats the electrode material onto the PCB and calendar roll. To achieve a consistent coat, the machine must control the material flow, coating speed, coating thickness, and among other features.
During the lamination of the electrode material, the automation equipment must have precise position control and lamination pressure control. The lamellar process uses devices such as robotic arms and stamping mechanisms to precisely overlap multiple layers of electrode material, cut the lamellar electrode material to a specified size, and implement the cut-stamping process to adjust the shape of the electrode. By precisely cutting the position and applying a certain pressure, a uniformly shaped electrode can be obtained.
Segmentation processing is the process in which electrodes are cut to the desired quantity. Specially designed mechanisms are used to achieve fast and precise segmentation.
In electrode assembly, the separator and electrolyte are inserted between the positive and negative electrodes to construct the unit. Automation equipment enables precise material supply and position control for efficient and consistent assembly.
Lenses are used in lithium battery manufacturing equipment for visual inspection, identification of features, and process control to prevent malfunction. During the coating of electrodes, a lens is used for visual inspection of the uniformity and the quality of the coating. Vision is also used to locate and control the correct position and direction of material during the winding of the cathode film and diaphragm. Through the use of lenses, uniform and accurate winding can be obtained, thereby improving product quality.

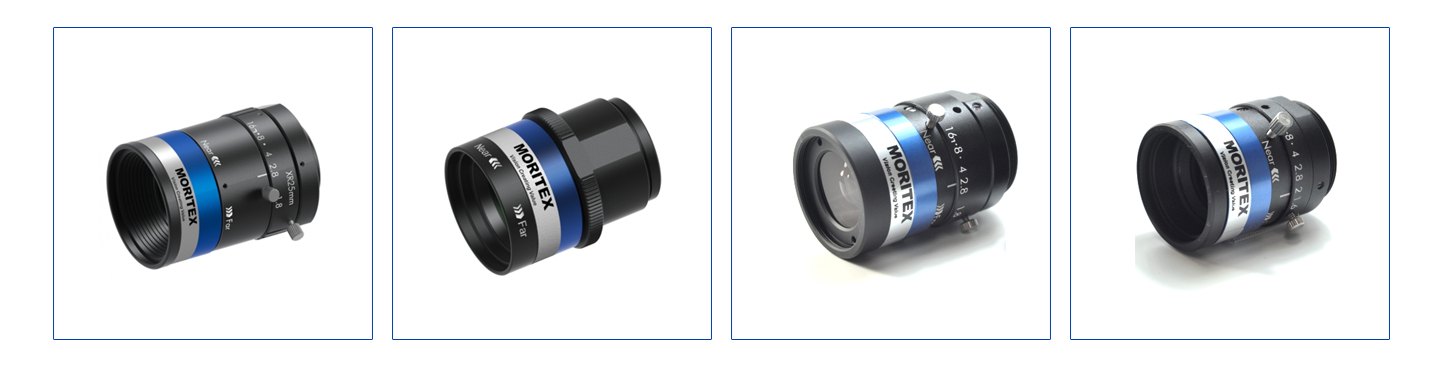

Recommended lens

FA lens ML-UR/SR/XR series
Anti-vibration lens ML-MC-G series
Anti-vibration Macro lens BR-G series
ML-FF series for line scan camera

Recommended lens

Macro Lens

Series
  • Model name
  • Focal length
    [mm]
  • F#
  • Max Mag.
    [mm]
  • WD
    [mm]
  • Mag.
    [x]
  • TV distortion
    [%]
  • Pixel size/Resolution
  • Filter thread
  • Dimensions O.D.x Lens tube length
    [mm]
  • Weight
    [g]
MC-G
  • ML-MC1228-18C-G
  • 12
  • 2.8
  • 17.6mm/1.1"
  • 300-1000
  • 0.029-0.009
  • <2.0
  • 3.5um/150lp/mm
  • M30.5x0.5
  • φ34x80
  • 100
  • ML-MC2528-18C-G
  • 25
  • 2.8
  • 17.6mm/1.1"
  • 300-1000
  • 0.079-0.024
  • <0.26
  • 3.5um/150lp/mm
  • M30.5x0.5
  • φ32x38.2
  • 65
  • ML-MC3528-18C-G
  • 35
  • 2.8
  • 17.6mm/1.1"
  • 300-1000
  • 0.110-0.035
  • <0.13
  • 3.5um/150lp/mm
  • M30.5x0.5
  • φ32x46.4
  • 70
  • ML-MC5028-18C-G
  • 50
  • 2.8
  • 17.6mm/1.1"
  • 300-1000
  • 0.170-0.050
  • <0.21
  • 3.5um/150lp/mm
  • M30.5x0.5
  • φ32x58.3
  • 75
  • ML-MC7528-18C-G
  • 75
  • 28
  • 17.6mm/1.1"
  • 400-1000
  • 0.21-0.079
  • <0.15
  • 3.5um/150lp/mm
  • M35.5x0.5
  • φ38x75
  • 125
MC-XR
  • ML-MC2518XR-18C
  • 25
  • 1.8-16
  • 1.1"
  • 500-70
  • 0.060-0.306
  • <-0.087
  • 2.2um/200lp/mm
  • M35.5x0.5
  • φ38x51.2
  • 120
  • ML-MC2517XR-18C-B
  • 25
  • 1.7-16
  • 19.2mm/1.2”
  • 550-70
  • 0.04-0.32
  • <-0.032
  • 2.2um/200lp/mm
  • M35.5x0.5
  • φ42x61.6
  • 208
  • ML-MC3518XR-18C
  • 35
  • 1.8-16
  • 19.2mm/1.2”
  • 600-150
  • 0.058-0.236
  • <0.065
  • 2.2um/200lp/mm
  • M30.5x0.5
  • φ35x43.3
  • 80
  • ML-MC5020XR-18C
  • 50
  • 2.0-16
  • 19.2mm/1.2”
  • 600-150
  • 0.083-0.371
  • <-0.048
  • 2.2um/200lp/mm
  • M35.5x0.5
  • φ40x70.1
  • 180
  • ML-MC7528XR-18C
  • 75
  • 28-16
  • 19.2mm/1.2”
  • 500-200
  • 0.163-0.464
  • <0.035
  • 2.2um/200lp/mm
  • M37x0.75
  • φ40x82.3
  • 235
  • ML-MC9028XR-18C
  • 90
  • 2.8-16
  • 19.2mm/1.2”
  • 400-216
  • 0.320-0.995
  • <0.026
  • 2.2um/200lp/mm
  • M34x0.5
  • φ40x95.8
  • 220

CCTV Lens

Series
  • Model name
  • Focal length
    [mm]
  • F#
  • Max Mag.
    [mm]
  • WD
    [mm]
  • Minimum closest
    WD[x]
  • FOV@500mm
    [H×V]
  • TV distortion
    [%]
  • Pixel size/Resolution
  • Filter thread
  • Dimensions O.D.x Lens tube length
    [mm]
  • Weight
    [g]
UR
  • ML-M0625UR
  • 6
  • 2.5~16
  • 11mm/2/3"
  • 100
  • 0.056
  • 74.8°x 58.4°
  • <-2.668
  • 2.2um /230lp/mm
  • M25.5x0.5
  • φ29.5x50
  • 90
  • ML-M0822UR
  • 8
  • 2.2-16
  • 11mm/2/3"
  • 100
  • 0.071
  • 58.4°x 44.8°
  • <-1.802
  • 2.2um/230lp/mm
  • M25.5x0.5
  • φ29.5x37.8
  • 60
  • ML-M1218UR
  • 12
  • 1.8-16
  • 11mm/2/3"
  • 150
  • 0.075
  • 40.5°x 30.8°
  • <-0.983
  • 2.2um/230lp/mm
  • M25.5x0.5
  • φ29.5x37
  • 50
  • ML-M1616UR
  • 16
  • 1.6-16
  • 11mm/2/3"
  • 150
  • 0.095
  • 30.4°x 22.9°
  • <-0.472
  • 2.2um/230lp/mm
  • M25.5x0.5
  • φ29.5x37
  • 50
  • ML-M2516UR
  • 25
  • 1.6-16
  • 11mm/2/3"
  • 150
  • 0.152
  • 19.4°x 14.6°
  • <-0.041
  • 2.2um/230lp/mm
  • M25.5x0.5
  • φ29.5x38.5
  • 50
  • ML-M3520UR
  • 35
  • 2.0-16
  • 11mm/2/3"
  • 200
  • 0.167
  • 13.70 x 10.3°
  • <-0.088
  • 2.2um/230lp/mm
  • M25.5x0.5
  • φ29.5x38.2
  • 50
  • ML-M5025UR
  • 50
  • 2.5-16
  • 11mm/2/3"
  • 300
  • 0.194
  • 9°x 6.7°
  • <-0.010
  • 2.2um/230lp/mm
  • M25.5x0.5
  • φ29.5x59.4
  • 70
SR
  • ML-U0817SR-18C
  • 8
  • 1.7-16
  • 17.6mm/1.1"
  • 100
  • 0.067
  • 86.4°x 69.5°
  • <-1.880
  • 3.5um/150lp/mm
  • M55x0.75
  • φ58x77
  • 244
  • ML-U1217SR-18C
  • 12
  • 1.7-16
  • 17.6mm/1.1"
  • 100
  • 0.11
  • 58.8°x 45.1°
  • <-1.958
  • 3.5um/150lp/mm
  • M35.5x0.5
  • φ39.5x65.5
  • 200
  • ML-U1615SR-18C
  • 16
  • 1.5-16
  • 17.6mm/1.1"
  • 100
  • 0.142
  • 45.1°x 34.7°
  • <-0.857
  • 3.5um/150lp/mm
  • M35.5x0.5
  • φ39.5x67
  • 182
  • ML-U2515SR-18C
  • 25
  • 1.5-16
  • 17.6mm/1.1"
  • 100
  • 0.215
  • 31.3°x 23.6°
  • <-0.738
  • 3.5um/150lp/mm
  • M37x0.75
  • φ42x67
  • 211
  • ML-U3518SR-18C
  • 35
  • 1.8-16
  • 17.6mm/1.1"
  • 195
  • 0.19
  • 18.4°x 14°
  • <-0.085
  • 3.5um/150lp/mm
  • M35.5x0.5
  • φ39.5x54.5
  • 120
  • ML-U5022SR-18C
  • 50
  • 2.2-16
  • 17.6mm/1.1"
  • 388
  • 0.194
  • 12°x 9°
  • <0.012
  • 3.5um/150lp/mm
  • M35.5x0.5
  • φ39.5x58.5
  • 140
  • ML-U2516SR-18C
  • 25
  • 1.6-16
  • 1.1"
  • 150
  • 0.16
  • 31°x 23°
  • <0.033
  • 200lp/mm
  • M35.5x0.5
  • φ39.5x54.6
  • 131

Line Scan Lens

Series
  • Model name
  • Focal Length
    [mm]
  • F#
  • Max IF
    [mm]
  • OI
    [mm]
  • WD
    [mm]
  • Mag.
    [x]
  • TV distortion
    [%]
  • MTF
  • AR coating
  • Mount

  • Lens tube length
    [mm]
  • Weight
    [g]
  • Relative illumination
    [%]
  • Coaxial module
FF Series
  • ML-2828-35M39
  • 28
  • 2.8-22
  • φ35
  • ∞-200
  • ∞-0.133
  • -1.477
  • 3.8um/130lp/mm
  • VIS-NIR
  • M39
  • φ54x69.5
  • 230
  • ML-3528-43M39
  • 35
  • 2.8-22
  • φ43
  • ∞-500
  • ∞-0.07
  • -0.695
  • 3.8um/130lp/mm
  • VIS
  • M39
  • φ45x73.8
  • 200
  • ML-3528-43F
  • 35
  • 2.8-22
  • φ43
  • ∞-68
  • ∞-0.5
  • 0.249
  • 3.8um/130lp/mm
  • VIS
  • F
  • φ64x81.1
  • 410
  • ML-4040-43M39
  • 40
  • 4.0-16
  • φ43
  • ∞-313
  • ∞-0.37
  • 0.05
  • 3.8um/130lp/mm
  • VIS
  • M39
  • φ46x38
  • 90
  • ML-5540-62M35
  • 55
  • 4.0-16
  • φ62.5
  • ∞-216
  • ∞-0.3
  • 0.06
  • 3.8um/130lp/mm
  • VIS
  • M35
  • φ43x38.4
  • 95
  • ML-6040-67M39
  • 60
  • 4.0-22
  • φ67
  • ∞-274
  • ∞-0.25
  • -0.369
  • 3.8um/130lp/mm
  • VIS-NIR
  • M39
  • φ45x24
  • 100
  • ML-6540-62M39
  • 65
  • 4.0-22
  • φ62.5
  • ∞-300
  • ∞-0.41
  • 0.278
  • 3.8um/130lp/mm
  • VIS-NIR
  • M39
  • φ45x39
  • 110
  • ML-8040-62M39
  • 80
  • 4.0-22
  • φ62.5
  • ∞-1000
  • ∞-0.088
  • -0.173
  • 3.8um/130lp/mm
  • VIS-NIR
  • M39
  • φ45x52.3
  • 200
  • ML-10040-82M39
  • 100
  • 4.0-22
  • φ82
  • ∞-300
  • ∞-0.43
  • -0.108
  • 3.8um/130lp/mm
  • VIS-NIR
  • M39
  • φ55x60
  • 230
Custom lens

Welcome to contact with our sales in your area for custom service.
