MG-Wave®

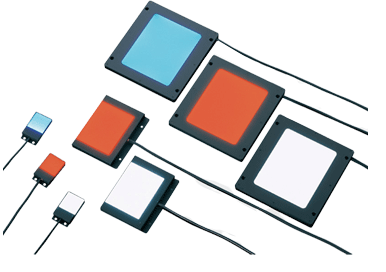

MEBL Series

▪ This lineup conserves space with a slim, compact design.

▪ This series delivers uniform, even light using a unique light transfer diffuser plate.

• Model Name
• Emitted Color
• Maximum Rated Current (A)
• Light Emitting Part Dimensions (mm)

• MEBL-CR25
• Red
• 0.03
• 25×25

• MEBL-CB25
• Blue
• 0.04
• 25×25

• MEBL-CW25
• White
• 0.04
• 25×25

• MEBL-CR50
• Red
• 0.17
• 50×50

• MEBL-CB50
• Blue
• 0.29
• 50×50

• MEBL-CW50
• White
• 0.29
• 50×50

• MEBL-CR7050
• Red
• 0.15
• 70×50

• MEBL-CB7050
• Blue
• 0.25
• 70×50

• MEBL-CW7050
• White
• 0.25
• 70×50

• MEBL-CR10080
• Red
• 0.32
• 100×80

• MEBL-CB10080
• Blue
• 0.57
• 100×80

• MEBL-CW10080
• White
• 0.57
• 100×80
