Telecentric Lens

MML044-SR130VI-18C

▪ The most appropriate optical design for camera pixel size for 2.74µm High resolution design to 12M sensor.

▪ Image format 18.5mm (1.2" sensor)

▪ Adjustable the best depth of field corresponding variable iris.

Download DataTechnical Datasheet Drawing Data Drawing Data（STEP）

Main Applications

: Electronics : Component and PCB Inspection

: Semi : Wafer inspection

Model Description

Specifications

Spec

MML044-SR130VI-18C

Magnification x

0.44

WD (mm)

130

Resolution (μm)

12.0 - 24.0

Depth of Field (mm)

3.314 - 6.616

NA

0.014 - 0.028

Effective Fno

8.02 - 16.01

Distortion (%)

0.012

Weight (g)

350

IF (mm)

18.5 (1.1")

Mount

C

* Resolution values indicate the theoretical resolution at a wavelength of 550nm.
* Depth of field is calculated assuming a horizontal 240TV resolution using a 1/2 CCD camera. (Permissible circle of confusion on the image-formation side: 40μm)

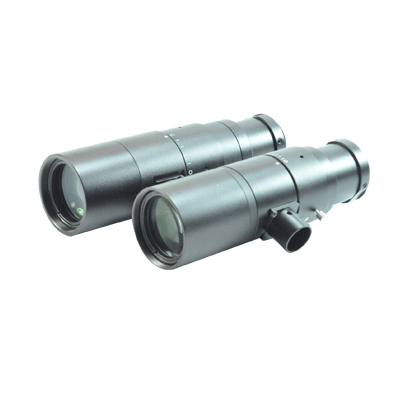

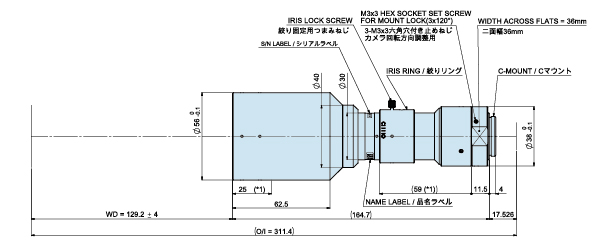

External View
