Telecentric Lens

MML06-SR110DVI-18C

▪ The most appropriate optical design for camera pixel size for 2.74µm High resolution design to 12M sensor.

▪ Image format 18.5mm (1.2" sensor)

▪ Adjustable the best depth of field corresponding variable iris.

MML06-SR110DVI-18C
Download DataDrawing Date Drawing Date（STEP）
Main Applications
Electronics : Component and PCB Inspection
Semi : Wafer inspection


Model Description


Specifications
  • Model
  • MML06-SR110DVI-18C
  • Magnification x
  • 0.6
  • O/I[mm]
  • 256.5
  • WD[mm]
  • 110
  • Resolution[μm]
  • 6.3~24.8
  • Depth of Field[mm]
  • 1.25~4.91
  • NA
  • 0.053~0.014
  • Effective F#
  • 5.6~22
  • Max. IF[mm]
  • 17.52
  • TV Distortion[%]
  • ≤-0.015
* Resolution values indicate the theoretical resolution at a wavelength of 550nm.
* Depth of field is calculated assuming a horizontal 240TV resolution using a 1/2 CCD camera. (Permissible circle of confusion on the image-formation side: 40μm)

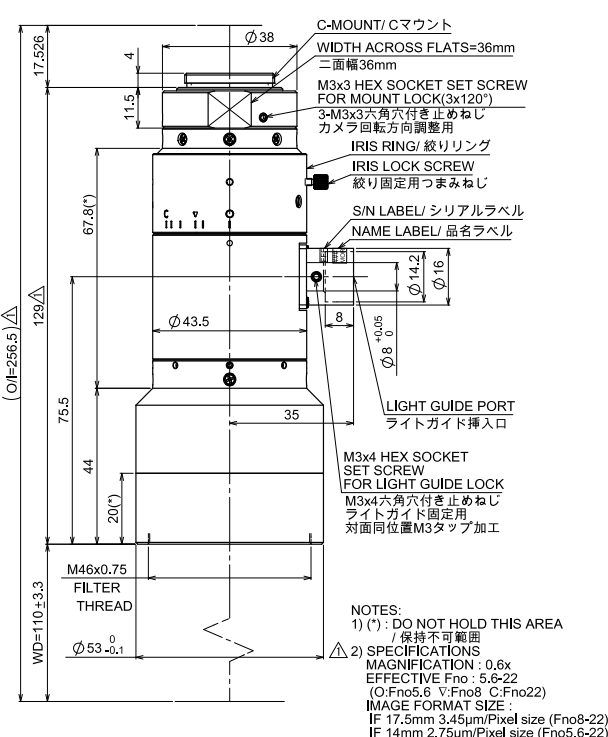

External View
