LED Illumination LED Controllers

LED Illumination

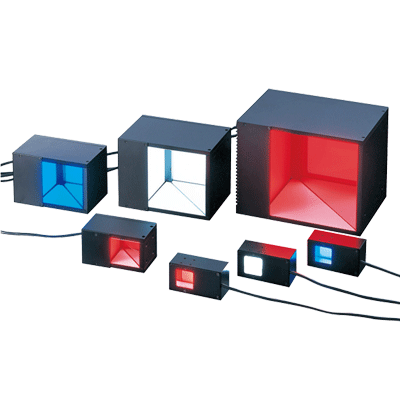

CV-CX-75X46X40R(-M12)

▪ Designed for use with our MML Series of telecentric lenses and other lenses without coaxial illumination, these items deliver uniform simulated coaxial light.
CV-CX-75X46X40R(-M12)
Download Data Drawing DataDrawing Data（STEP）
Main Applications

• Alignment inspection on specular surfaces, including wafers, metal surfaces, film, liquid crystal, and glass
• PCB pattern workbr

Model Description
Specifications
  • Spec
  • CV-CX-75X46X40R(-M12)
  • Emitted Color
  • Red
  • Power(W)
  • 1.5
  • External Dimensions (Length) (mm)
  • 75
  • External Dimensions (Width) (mm)
  • 46
  • External Dimensions (height) (mm)
  • 41
  • Weight(g)
  • 190
External View
Illumination Structure

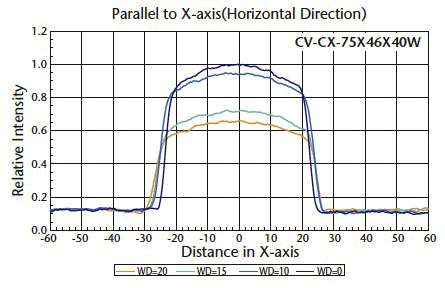

Light Distribution Characteristics
Imaging examples

Screw Head Inspection   Glass Bottle Opening
