Telecentric Lens

MML1-SR65DVI-18C

▪ The most appropriate optical design for camera pixel size for 2.74µm High resolution design to 12M sensor.

▪ Image format 18.5mm (1.2" sensor)

▪ Adjustable the best depth of field corresponding variable iris.

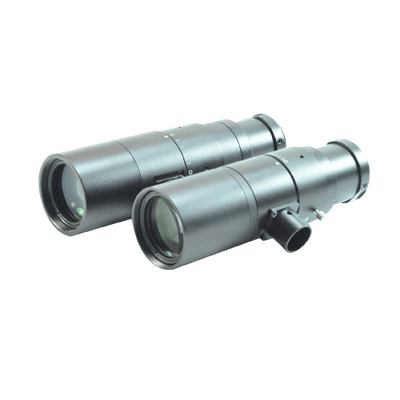

MML1-SR65DVI-18C
Main Applications
Electronics : Component and PCB Inspection
Semi : Wafer inspection


Model Description


Specifications
  • Spec
  • MML1-SR65DVI-18C
  • Magnification x
  • 1
  • WD (mm)
  • 65
  • Resolution (μm)
  • 4.7-14.8
  • Depth of Field (mm)
  • 0.560-1.760
  • NA
  • 0.071-0.023
  • Effective Fno
  • 7-22
  • Distortion (%)
  • 0.01
  • Weight (g)
  • 240
  • IF (mm)
  • 18.5
  • Mount
  • C
* Resolution values indicate the theoretical resolution at a wavelength of 550nm.
* Depth of field is calculated assuming a horizontal 240TV resolution using a 1/2 CCD camera. (Permissible circle of confusion on the image-formation side: 40μm)

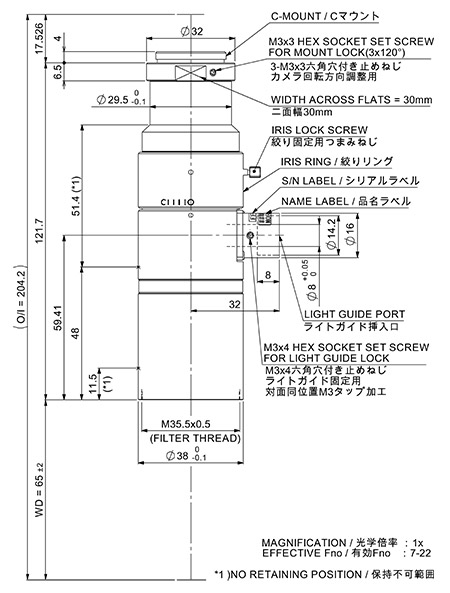

External View
