LED Illumination LED Controllers

LED Illumination

CV-BA-389X36W-DF-M12*1

▪ It is "CV-BA-DF Series" that designed the illuminance and diffusibility is higher than conventional bar illumination.

▪ It is best illumination for combination with CCTV Lens with long WD and wide FOV.

CV-BA-389X36W-DF-M12*1
Download Data Drawing DataDrawing Data（STEP）
Main Applications

• Appearance inspection (Label, Package)
• Parts inspection (Automobile, semiconductor)

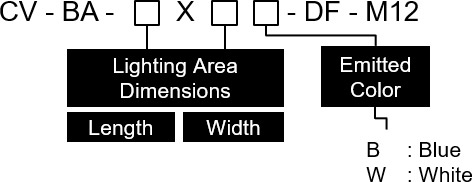

Model Description


Specifications
  • Spec
  • CV-BA-389X36W-DF-M12*1
  • Emitted Color
  • White
  • Power(W)
  • 48
  • External Dimensions (Length) (mm)
  • 397
  • External Dimensions (Width) (mm)
  • 42
  • External Dimensions (height) (mm)
  • 26
  • Lighting Area Dimensions (Length) (mm)
  • 389
  • Lighting Area Dimensions (Width) (mm)
  • 36
  • Weight(g)
  • 660

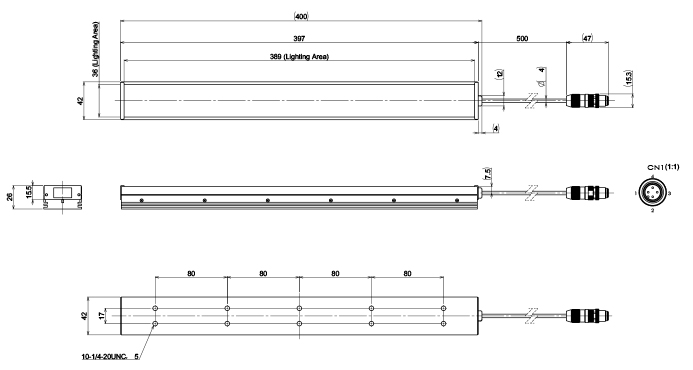

External View
