Macro/CCTV Lens

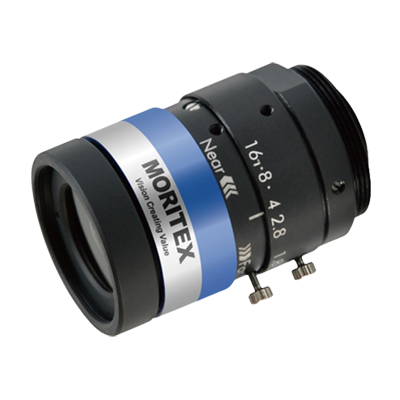

ML-MC16UR-16C

▪ Ideal for 8M 2/3”, 1/1.1”12M,  1”20M camera
▪ High resolution, compatible for 2.4um,2.5um，2.74um pixel
▪ Very low distortion
▪ VIR-NIR wide waveband coating design（400~1100nm）
ML-MC16UR-16C
Download DataDrawing Data

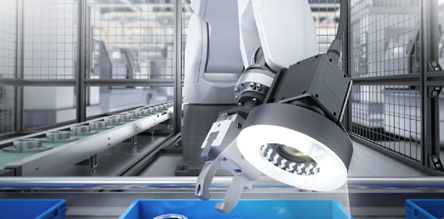

Robot alignment

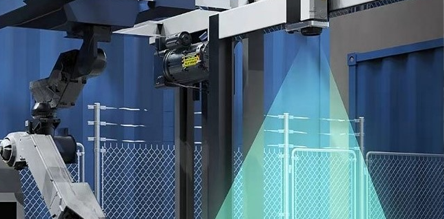

3D camera application

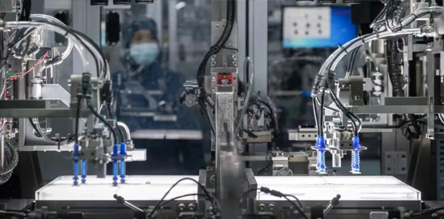

Li-battery inspection
Specifications
  • Spec
  • ML-MC16UR-16C
  • Focal Length (mm)
  • 16
  • Fno
  • 2.5~16
  • Magnification (x)
  • 0.095~0.029
  • WD(mm)
  • 150~550
  • O/I(mm)
  • 206.9~605.7
  • Dimensions O.D.x Lens tube length (mm)
  • Φ31.5 x 42.1
  • IF (mm)
  • 16.4 (1")
  • Mount
  • C
  • Resolution
  • 2.4um/2.5um/2.74um

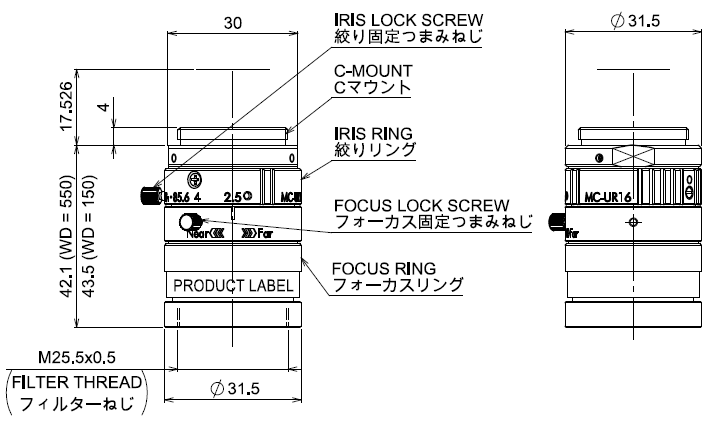

External View
