Macro/CCTV Lens

ML-MC25UR-16C

▪ Ideal for 8M 2/3”, 1/1.1”12M,  1”20M camera
▪ High resolution, compatible for 2.4um,2.5um，2.74um pixel
▪ Very low distortion
▪ VIR-NIR wide waveband coating design（400~1100nm）
ML-MC25UR-16C
Download DataDrawing Data
Robot alignment
3D camera application
Li-battery inspection
Specifications
  • Spec
  • ML-MC25UR-16C
  • Focal Length (mm)
  • 25
  • Fno
  • 2.5~16
  • Magnification (x)
  • 0.122~0.035
  • WD(mm)
  • 200~700mm
  • O/I(mm)
  • 249.6~747.5
  • Dimensions O.D.x Lens tube length (mm)
  • Φ31.5 x 40mm
  • IF (mm)
  • 16.4 (1")
  • Mount
  • C
  • Resolution
  • 2.4um/2.5um/2.74um

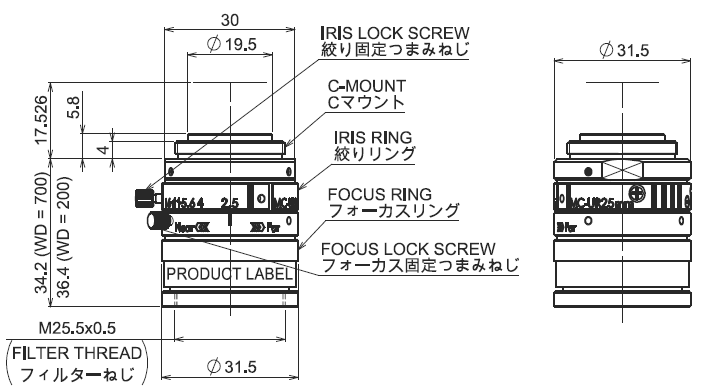

External View
