Telecentric Lens

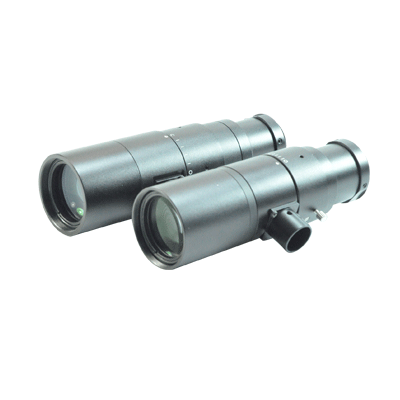

MML2-SR65DVI-18C

▪ MML-SR Series is designed for full compatible with 1.1” 3.5μm sensor.
MML2-SR65DVI-18C
Main Applications
Electronics : Component and PCB Inspection
Semi : Wafer inspection


Model Description


Specifications
  • Spec
  • MML2-SR65DVI-18C
  • Magnification x
  • 2
  • O/I (mm)
  • 213.3
  • WD (mm)
  • 65
  • Resolution (μm)
  • 2.7-7.4
  • Depth of Field (mm)
  • 0.160-0.440
  • NA
  • 0.125-0.045
  • Effective Fno
  • 8-22
  • Distortion (%)
  • -0.015
  • IF (mm)
  • 18
* Resolution values indicate the theoretical resolution at a wavelength of 550nm.
* Depth of field is calculated assuming a horizontal 240TV resolution using a 1/2 CCD camera. (Permissible circle of confusion on the image-formation side: 40μm)

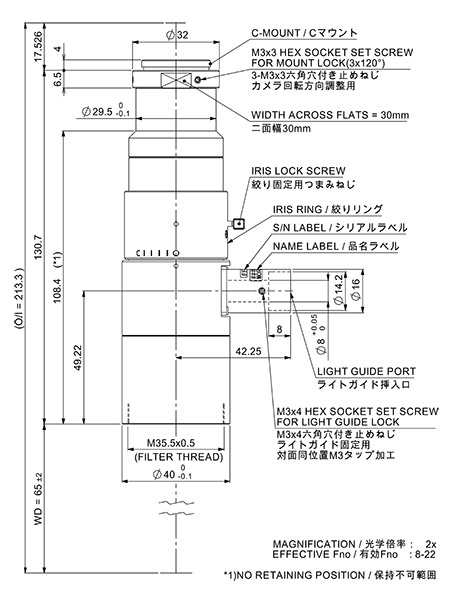

External View
