Telecentric Lens

MML1.5-HR110DVI-16C
▪ MML-HR16C is speccially designed for 1inch camera.

Download DataDrawing Data Drawing Data（STEP）

Main Applications

: FPD : Glass alignment

: Semicon : Wafer alignment, Bonding alignment

: Electronics : Parts inspection

Specifications

Spec
MML1.5-HR110DVI-16C

Magnification x
1.5

WD (mm)
110

Resolution（μm）
4.5-9.86

Depth of Field（mm）
0.36-0.8

NA
0.075-0.034

Effective Fno
10-22

Distortion（%）
0.04

Weight (g)
240

IF (mm)
16.5

Mount
C Mount

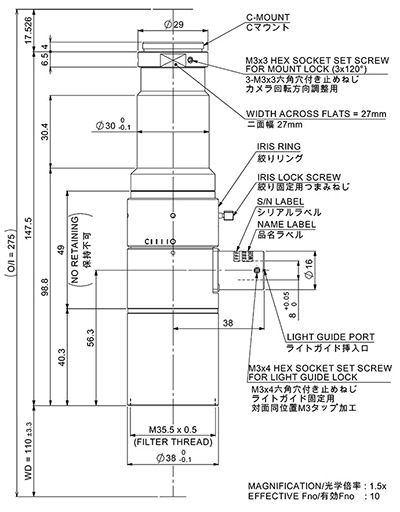

External View
