▪10× optical magnification ▪ Capable of 15× and 20× with rear converter lenses ▪ High NA of 0.23 ▪ Long WD, 55.2 mm ▪ Microscope class resolution, 1.5 μm ▪ Compact, integrated design
* Resolution values indicate the theoretical resolution at a wavelength of 550nm * Depth of field is calculated assuming a horizontal 240TV resolution using a 1/2 CCD camera. (Permissible circle of confusion on the image-formation side: 40μm)

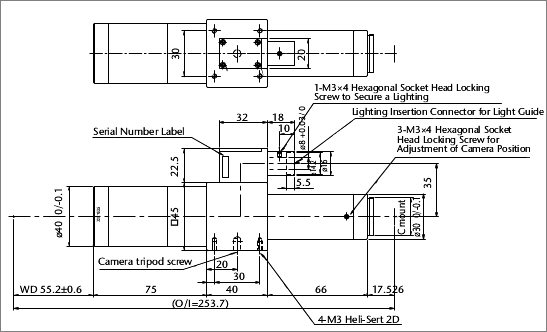

External View
