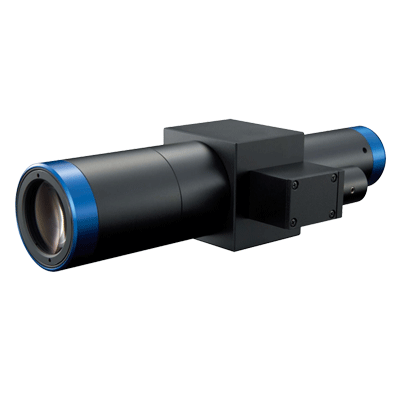

Telecentric Lens

SOD-20X-VI

▪ High optical magnification: 20×
▪ Capable of 30× and 40× with rear converter lenses
▪ Long WD, 37.5 mm
▪ High NA of 0.35
▪ Microscope class resolution, 1 μm
▪ Variable iris
▪ Compact, integrated design


SOD-20X-VI
Main Applications
Alignment
Component recognition and inspection


Specifications
  • Spec
  • SOD-20X-VI
  • Coaxial Illumination
  • -
  • Magnification
  • 20
  • WD (mm)
  • 37.5
  • Resolution (μm)
  • 1~3
  • Depth of Field (mm)
  • 0.0057-0.0026
  • NA
  • 0.35-0.114
  • Effective Fno
  • 28.3-88
  • Distortion (%)
  • 0.02
  • Weight (g)
  • 930
  • Largest Compatible Sensor
  • 2/3"
  • Mount
  • C Mount
* Resolution values indicate the theoretical resolution at a wavelength of 550nm.
* Depth of field is calculated assuming a horizontal 240TV resolution using a 1/2 CCD camera. (Permissible circle of confusion on the image-formation side: 40μm)

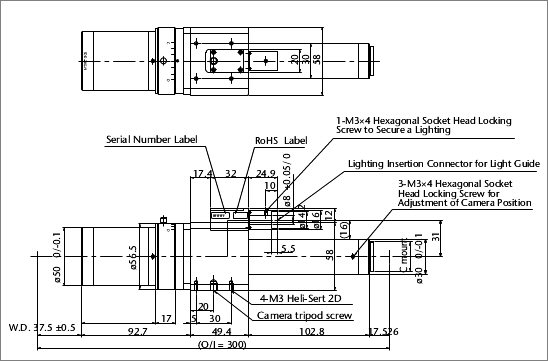

External View
