Telecentric Lens

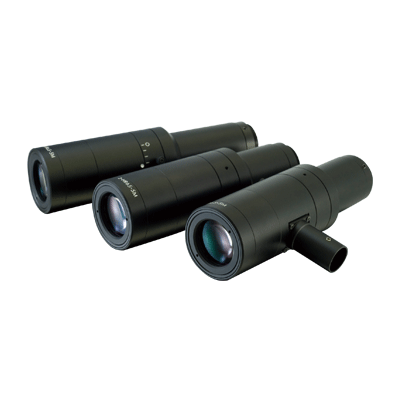

MML014-HR110D-5M

▪ Highest image quality of the MML Series designed for use with 5 megapixel, 3.45 μm element sensors
▪ WD 110 mm lineup focuses on large FOV applications with magnification of 0.14× and 0.3×(magnification depends on model)
▪ All models include uniform coaxial illumination functionality option
▪ Features an internal reflection light-scattering design and noise reduction filter for hot spot reduction
▪ Very low distortion

MML014-HR110D-5M
Main Applications
High accuracy alignment and OCR/OCV
Surface inspection such as silicon wafers and machine components
Metrology and gauging


Model Description


Specifications
  • Spec
  • MML014-HR110D-5M
  • Coaxial Illumination
  • -
  • Magnification
  • 0.14±5%
  • WD (mm)
  • 110
  • Resolution (μm)
  • 19.2
  • Depth of Field (mm)
  • 16.4
  • NA
  • 0.018
  • Effective Fno
  • 4
  • Distortion (%)
  • 0.001
  • Weight (g)
  • 730
  • Largest Compatible Sensor
  • 2/3"
  • Mount
  • C Mount
* Resolution values indicate the theoretical resolution at a wavelength of 550nm.
* Depth of field is calculated assuming a horizontal 240TV resolution using a 1/2 CCD camera. (Permissible circle of confusion on the image-formation side: 40μm)

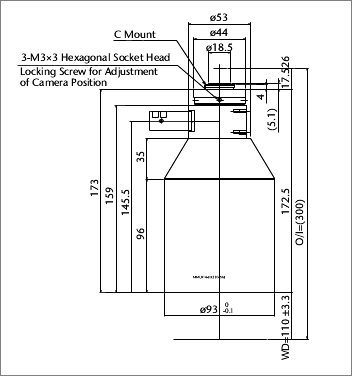

External View

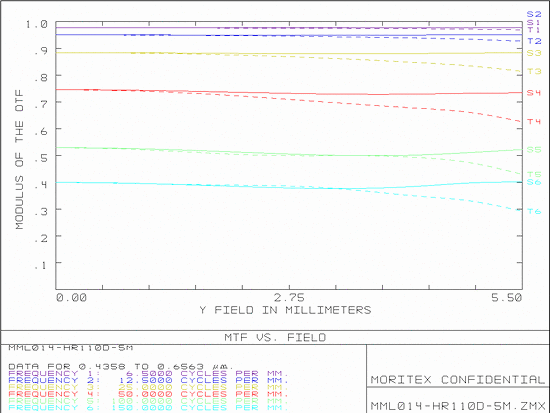

MTF
