Telecentric Lens

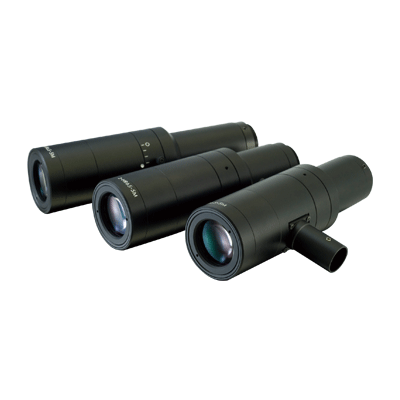

MML03-HR65-5M

▪ Highest image quality of the MML Series designed for use with 5 megapixel, 3.5 μm element sensors
▪ WD 65 mm lineup includes magnifications of 0.3×
▪ All models include uniform coaxial illumination functionality option
▪ Features an internal reflection light-scattering design and noise reduction filter for hot spot reduction
▪ Very low distortion

 MML03-HR65-5M
Main Applications
High accuracy alignment and OCR/OCV
Surface inspection such as silicon wafers and machine components
Metrology and gauging


Model Description


Specifications
  • Spec
  • MML03-HR65-5M
  • Coaxial Illumination
  • -
  • Magnification
  • 0.30±5%
  • WD (mm)
  • 65.1
  • Resolution (μm)
  • 15.7
  • Depth of Field (mm)
  • 6.2
  • NA
  • 0.021
  • Effective Fno
  • 7
  • Distortion (%)
  • 0.006
  • Weight (g)
  • 198
  • Largest Compatible Sensor
  • 2/3"
  • Mount
  • C Mount
* Resolution values indicate the theoretical resolution at a wavelength of 550nm.
* Depth of field is calculated assuming a horizontal 240TV resolution using a 1/2 CCD camera. (Permissible circle of confusion on the image-formation side: 40μm)

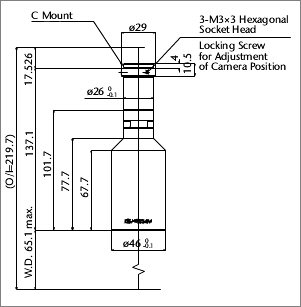

External View

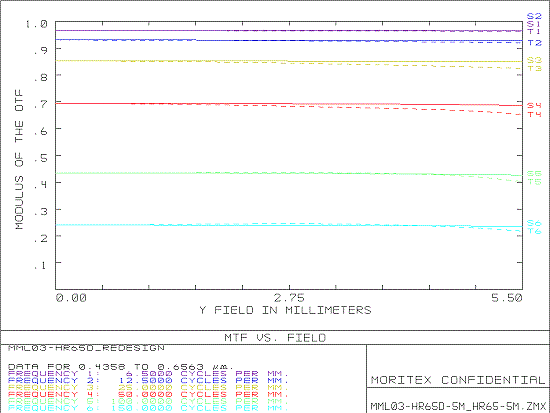

MTF
