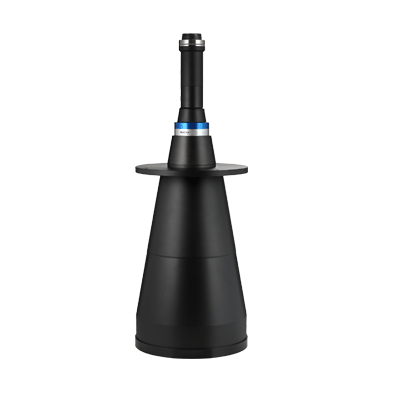

▪ Bi-telecentric lens
▪ High resolution design compatible with 3.5 μm/pixel sensors
▪ 10 FOV types
▪ Inspection data provided for every lens
▪ C Mount : 1-32UNF, FB17.526mm
| Spec | MTL-10011C-011 | |||
|---|---|---|---|---|
| Max IF (mm) | 11 | |||
| FOV type (Φmm) | 100 | |||
| Mag. (x) | 0.110 | |||
| WD (mm) | 220 | |||
| Field of View | 1/3" | H | 4.8 | 44 |
| V | 3.6 | 33 | ||
| D | 6 | 55 | ||
| 1/2" | H | 6.4 | 58 | |
| V | 4.8 | 44 | ||
| D | 8 | 73 | ||
| 1/1.8" | H | 7.1 | 65 | |
| V | 5.3 | 48 | ||
| D | 8.9 | 81 | ||
| 2/3" | H | 8.8 | 80 | |
| V | 6.6 | 60 | ||
| D | 11 | 100 | ||
| Optical specifications | Effective F# | 8.0 | ||
| Distortion | (%) | -0.01 | ||
| Telecentricity | (deg.) | 0.03 | ||
|
Resolution @520nm |
(μm) | 46.4 | ||
|
DOF @40um |
(mm) | 53.2 | ||

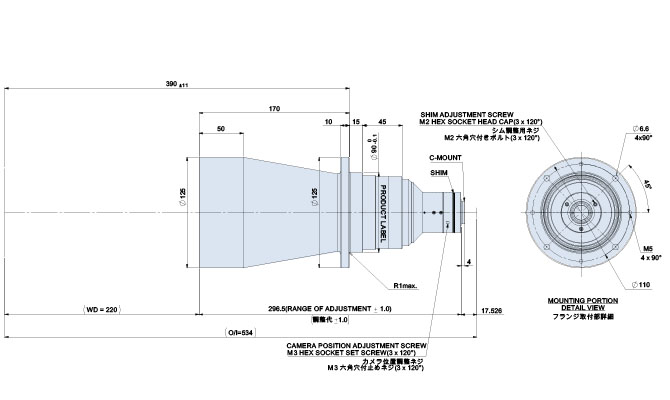

| Mechanical specifications | Front Outer dia. | (Φmm) | 125 | |
| Barrel Length | (mm) | 296.5 | ||
| Weight | (kg) | 1.89 | ||
| Mount | C | |||
