▪ Highest image quality of the MML Series designed for use with 5 megapixel, 3.5 μm element sensors (Except for MML4-HR65DVI-5M) ▪ All models include (or not) uniform coaxial illumination functionality option ▪ Features an internal reflection light-scattering design and noise reduction filter for hot spot reduction ▪ Very low distortion ▪ Variable iris available for most models
Surface inspection such as silicon wafers and machine components
Metrology and gauging
Model Description
Specifications
Spec
MML3-HR65DVI-5M
Coaxial Illumination
-
Magnification
3.00±5%
WD (mm)
65.1
Resolution (μm)
2.1-10.5
Depth of Field (mm)
0.085-0.420
NA
0.157-0.032
Effective Fno
9.60-47.50
Distortion (%)
0.012
Weight (g)
280
Largest Compatible Sensor
2/3"
Mount
C Mount
* Resolution values indicate the theoretical resolution at a wavelength of 550nm. * Depth of field is calculated assuming a horizontal 240TV resolution using a 1/2 CCD camera. (Permissible circle of confusion on the image-formation side: 40μm)

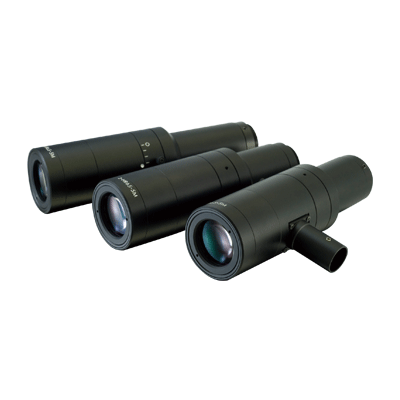

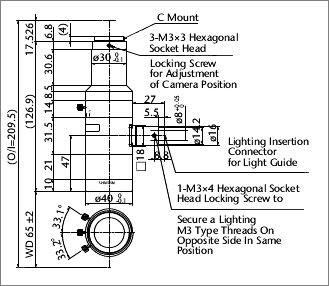

External View

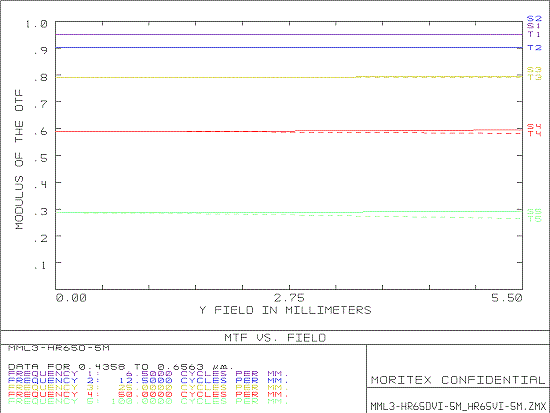

MTF
