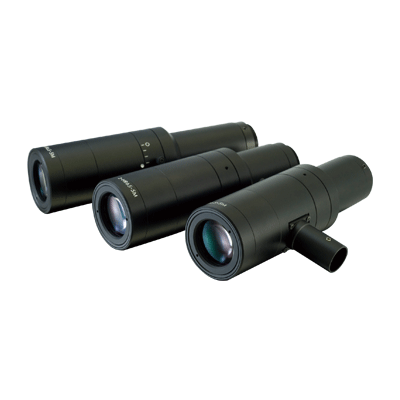

▪ Highest image quality of the MML Series designed for use with 5 megapixel, 3.5 μm element sensors (Except for MML4-HR65DVI-5M) ▪ All models include (or not) uniform coaxial illumination functionality option ▪ Features an internal reflection light-scattering design and noise reduction filter for hot spot reduction ▪ Very low distortion ▪ Variable iris available for most models
Surface inspection such as silicon wafers and machine components
Metrology and gauging
Model Description
Specifications
Spec
MML4-HR65VI-5M
Coaxial Illumination
-
Magnification
4.00±5%
WD (mm)
65
Resolution (μm)
2.0-8.2
Depth of Field (mm)
0.060-0.240
NA
0.167-0.041
Effective Fno
12.10-48.60
Distortion (%)
0.029
Weight (g)
290
Largest Compatible Sensor
2/3"
Mount
C Mount
* Resolution values indicate the theoretical resolution at a wavelength of 550nm. * Depth of field is calculated assuming a horizontal 240TV resolution using a 1/2 CCD camera. (Permissible circle of confusion on the image-formation side: 40μm)

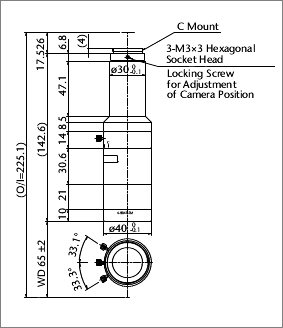

External View

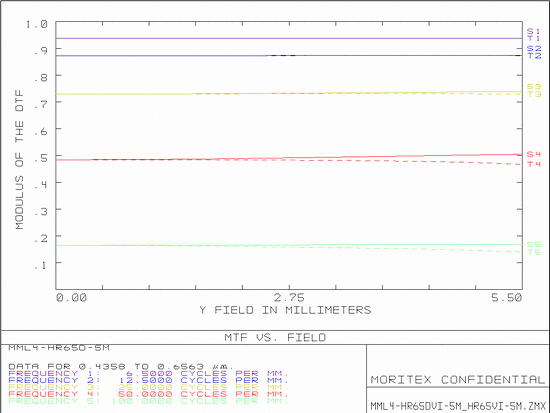

MTF
