Telecentric Lens

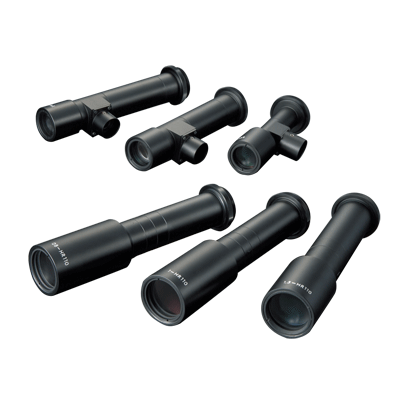

MML08-HR65

▪ High resolution throughout the entire field of view
▪ High NA, high contrast, and very low distortion
▪ All models are available with uniform coaxial illumination functionality as an option
▪ Most models are compatible with 2/3" or smaller CCD elements and support mega pixel CCDs, 1.3 mega pixels or greater

MML08-HR65
Main Applications
Alignment
Component recognition and inspection


Model Description


Specifications
  • Spec
  • MML08-HR65
  • Coaxial Illumination
  • -
  • Magnification
  • 0.8±5%
  • WD (mm)
  • 65
  • Resolution (μm)
  • 8.4
  • Depth of Field (mm)
  • 1.2
  • NA
  • 0.04
  • Effective Fno
  • 9.9
  • Distortion (%)
  • 0.013
  • Weight (g)
  • 60
  • Largest Compatible Sensor
  • 2/3"
  • Mount
  • C Mount
* Resolution values indicate the theoretical resolution at a wavelength of 550nm.
* Depth of field is calculated assuming a horizontal 240TV resolution using a 1/2 CCD camera. (Permissible circle of confusion on the image-formation side: 40μm).

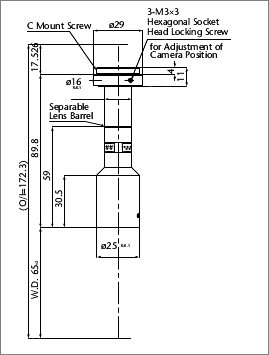

External View
