Telecentric Lens

MML018-110D

▪ Low magnification 0.18× telecentric optical system with very little image distortion.
▪ Optional uniform coaxial illumination functionality covering the entire field of view.




MML018-110D
Download DataTechnical DatasheetDrawing Data Drawing Data (STEP)
Main Applications
Alignment
Component recognition and inspection


Model Description


Specifications
  • Spec
  • Coaxial Illumination
  • 同轴光
  • O
  • Magnification
  • 0.18
  • WD (mm)
  • 110.4
  • Resolution (μm)
  • 24
  • Depth of Field (mm)
  • 15
  • NA
  • 0.01
  • Effective Fno
  • 6.4
  • Distortion (%)
  • -0.08
  • Weight (g)
  • 700
  • Largest Compatible Sensor
  • 2/3"
  • Mount
  • C mount
* Resolution values indicate the theoretical resolution at a wavelength of 550nm.
* Depth of field is calculated assuming a horizontal 240TV resolution using a 1/2 CCD camera. (Permissible circle of confusion on the image-formation side: 40μm)

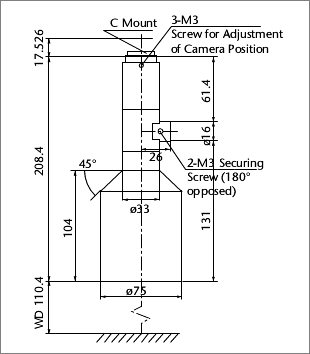

External View
