Telecentric Lens

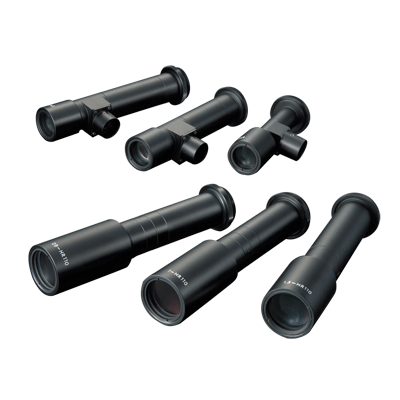

MML018-110

▪ Low magnification 0.18× telecentric optical system with very little image distortion.
▪ Optional uniform coaxial illumination functionality covering the entire field of view.


MML018-110
Download DataDrawing Data Drawing Data (STEP)
Main Applications
Alignment
Component recognition and inspection


Model Description


Specifications
  • Spec
  • MML018-110
  • Coaxial Illumination
  • -
  • Magnification
  • 0.18
  • WD (mm)
  • 110.4
  • Resolution (μm)
  • 24
  • Depth of Field (mm)
  • 15
  • NA
  • 0.01
  • Effective Fno
  • 6.4
  • Distortion (%)
  • -0.08
  • Weight (g)
  • 700
  • Largest Compatible Sensor
  • 2/3"
  • Mount
  • C mount

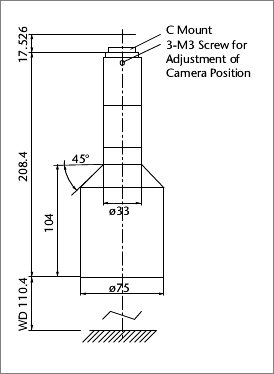

External View
