Line Scan/Large Format Lens

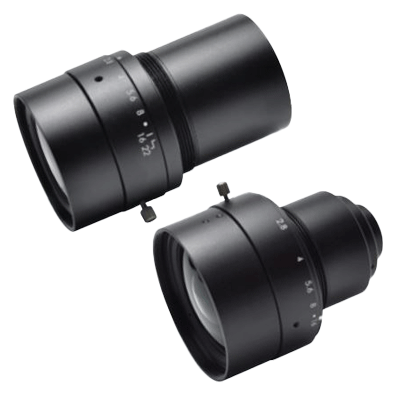

ML-4056-56M39

▪ Standard F mount lens suitable for 6k7 and 29Mp camera. Perfect image quality from the center to the edge of the image especially in the short WD range.

Main Applications

: Electronics: Component and PCB Inspection

: Factory Automation: Food, Glass, Bottle inspection

: Print: Color inspection

Specifications

Model
ML-4056-56M39

Focal Length (mm)
40

F#
5.6-22

Max.IF[mm]
40

WD (mm)
600-240

OI[mm]
664.48-308.95

Mag.[x]
0.07-0.18

TV Distortion[%]
0.331

MTF
5um/100lp/mm

AR Coating
VIS

Mount
M39

Outer dia.×Lens tube length[mm]
φ56x37.5

Weight[g]
85

Relative illumination[%]
19.72
