Telecentric Lens

MML4-HR65DVI-5M-SW

▪ Dedicated infrared design (900~1700 nm)
▪ Designed for special application,match with IR camera and IR illumination.
MML4-HR65DVI-5M-SW
Main Applications
FPD : Glass alignment
Semicon : Wafer alignment, Bonding alignment
Electronics : Parts inspection


Model Description


Specifications
  • Spec
  • MML4-HR65DVI-5M-SW
  • Magnification (x)
  • 4
  • O/I(mm)
  • 225.1
  • WD (mm)
  • 65
  • Resolution (μm)
  • 4.8~19.4
  • Depth of Field (mm)
  • 0.06~0.25
  • NA
  • 0.167~0.041
  • Effective Fno
  • 12.03~48.6
  • Distortion (%)
  • ≤0.037
  • IF (mm)
  • 11
* Resolution values indicate the theoretical resolution at a wavelength of 1300nm.
* Depth of field is calculated assuming a horizontal 240TV resolution using a 1/2 CCD camera. (Permissible circle of confusion on the image-formation side: 40μm).

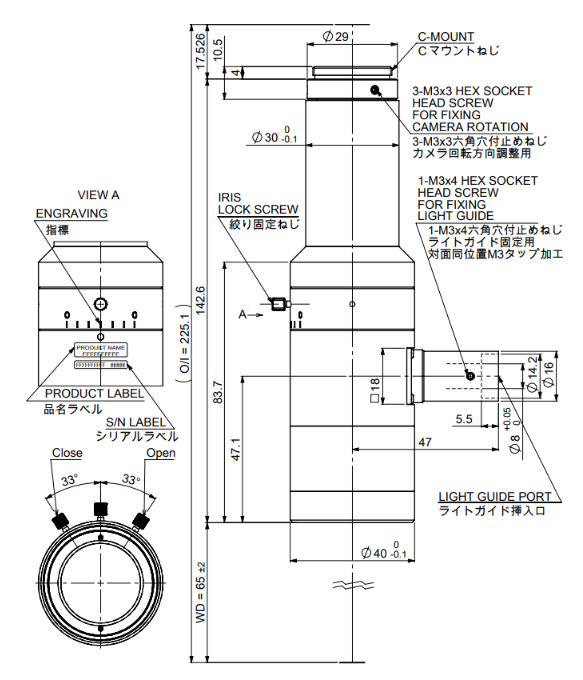

External View
