Telecentric Lens

MML05-ZR150DVI-20P

▪ The most appropriate optical design for camera pixel size for 2.74µm High resolution
▪ Image format 20mm (1.2" sensor)
▪ Adjustable the best depth of field corresponding variable iris
▪ Visible to Near infrared compatible
MML05-ZR150DVI-20P
Download DataTechnical DatasheetDrawing Data Drawing Data（STEP）
Main Applications
Electronics : Component and PCB Inspection
Semi : Wafer inspection


Model Description


Specifications
  • Spec
  • MML05-ZR150DVI-20P
  • Magnification (x)
  • 0.5
  • O/I(mm)
  • 450
  • WD (mm)
  • 150
  • Resolution (μm)
  • 7.0~21.5
  • Depth of Field (mm)
  • 1.66~5.12
  • NA
  • 0.048~0.016
  • Effective Fno
  • 5.2~16
  • Distortion (%)
  • ≤0.004
  • IF (mm)
  • 20

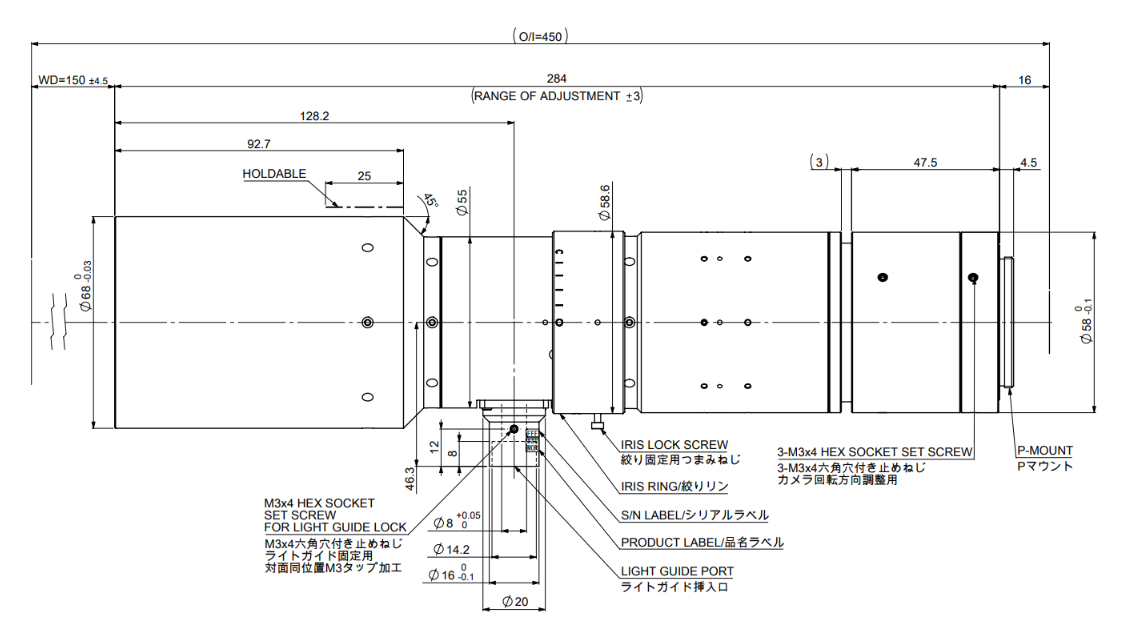

External View
