Telecentric Lens

MML1-ZR150DVI-20C

▪ The most appropriate optical design for camera pixel size for 2.74µm High resolution
▪ Image format 20mm (1.2" sensor)
▪ Adjustable the best depth of field corresponding variable iris
▪ Visible to Near infrared compatible
MML1-ZR150DVI-20C
Download DataTechnical DatasheetDrawing Data Drawing Data（STEP）
Main Applications
Electronics : Component and PCB Inspection
Semi : Wafer inspection


Model Description


Specifications
  • Spec
  • MML1-ZR150DVI-20C
  • Magnification (x)
  • 1
  • O/I(mm)
  • 449.3
  • WD (mm)
  • 150
  • Resolution (μm)
  • 3.6~10.7
  • Depth of Field (mm)
  • 0.43~1.28
  • NA
  • 0.092~0.031
  • Effective Fno
  • 5.4~16
  • Distortion (%)
  • ≤0.006
  • IF (mm)
  • 20

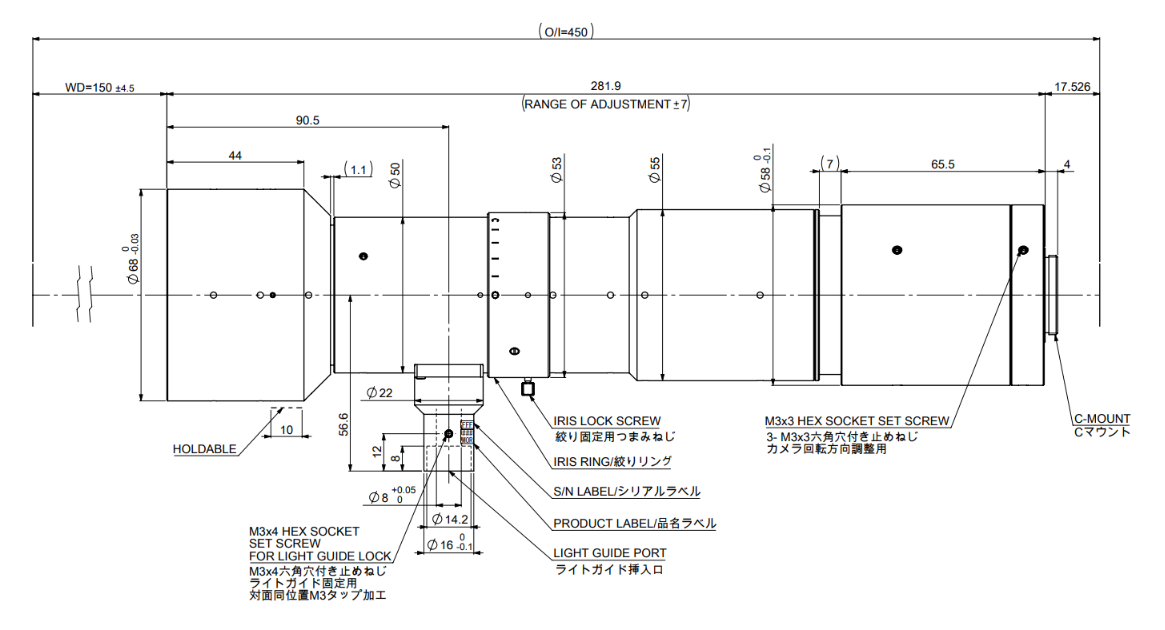

External View
