Microscopic Telecentric Lens Bi-Telecentric Lens/Illumination Macro/CCTV Lens Line Scan/Large Format Lens

Line Scan/Large Format Lens

ML-LU6040-58V70

▪ Large format IF58mm,Resolving power 150lp/mm,Resolution 3.5μm/pixel
▪ Designed for 16K3.5µm
▪ VIR-NIR wide waveband coating design (400~1100nm)
▪ Floating mechanism for consistent performance
ML-LU6040-58V70
Download Data Technical Datasheet Drawing Data Drawing Data（STEP）
Main Applications
Battery inspection


Specifications
  • Spec
  • ML-LU6040-58V70
  • Focal Length(mm)
  • 60
  • Magnification x
  • ∞-0.287
  • WD(mm)
  • ∞-200
  • Fno
  • 4.0-22
  • AR Coating
  • Vis-NIR
  • Weight(g)
  • 1629
  • IF (mm)
  • 58
  • Mount
  • V70

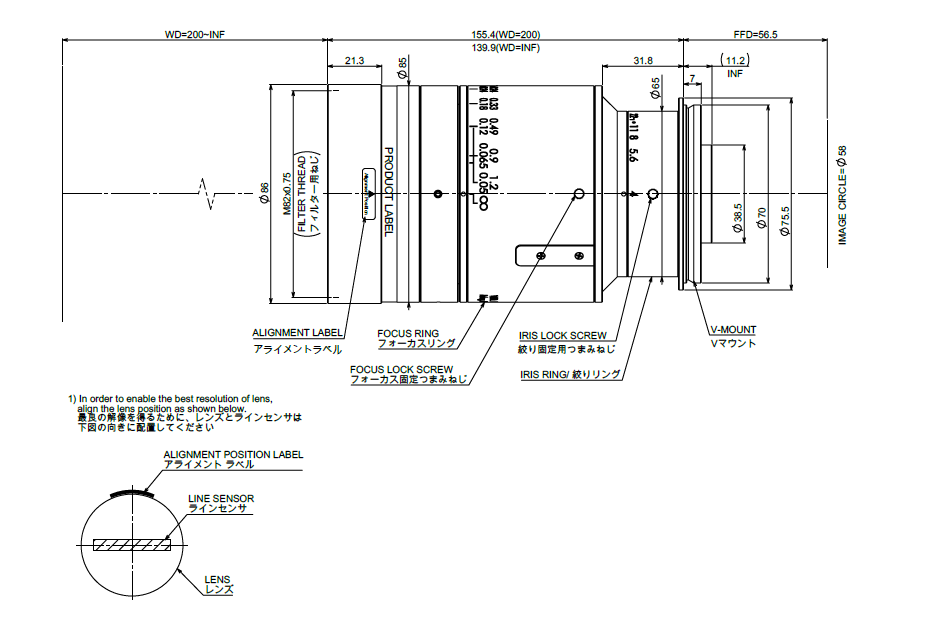

External View
