Telecentric Lens

MML5-HR60DVI-43M58

▪ Designed for large format camera(Diagonal 28/35/43mm)
▪ High resolution, compatible with 3.5μm/pixel camera elements.
MML5-HR60DVI-43M58
Main Applications
FPD : Glass alignment
Semicon : Wafer alignment, Bonding alignment
Electronics : Parts inspection
Model Description
Specifications
  • Model
  • MML5-HR60DVI-43M58
  • Magnification (x)
  • 5
  • O/I [mm]
  • 394.3
  • WD (mm)
  • 60
  • Resolution (μm)
  • 1.7~3.0
  • Depth of Field (mm)
  • 0.04~0.07
  • NA
  • 0.200~0.114
  • Effective Fno
  • 12.5~22
  • Max. IF [mm]
  • 43.5
  • Distortion [%]
  • ≤0.025
*Resolution values indicate the theoretical resolution at a wavelength of 550nm.
*Depth of field is calculated assuming a horizontal 240TV resolution using a 1/2 CCD camera. (Permissible circle of confusion on the image-formation side: 40μm).

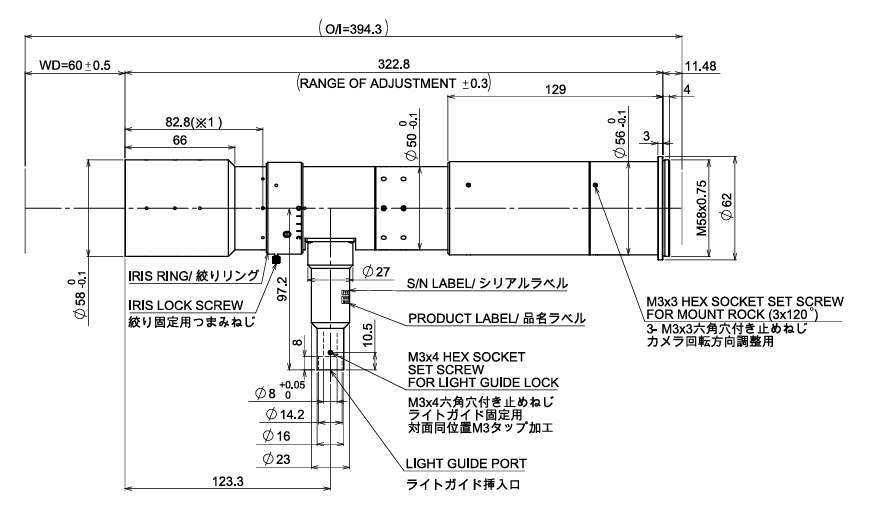

External View
