Telecentric Lens

MML0685-ZR150DVI-20P

▪ The most appropriate optical design for camera pixel size for 2.74µm High resolution
▪ Image format 20mm (1.2" sensor)
▪ Adjustable the best depth of field corresponding variable iris
▪ Visible to Near infrared compatible
MML0685-ZR150DVI-20P
Download DataTechnical DatasheetDrawing Data Drawing Data（STEP）
Main Applications
Electronics : Component and PCB Inspection
Semi : Wafer inspection


Model Description


Specifications
  • Spec
  • MML0685-ZR150DVI-20P
  • Magnification (x)
  • 0.685
  • O/I(mm)
  • 450
  • WD (mm)
  • 150
  • Resolution (μm)
  • 5.2~15.7
  • Depth of Field (mm)
  • 0.90~2.73
  • NA
  • 0.064~0.021
  • Effective Fno
  • 5.3~16
  • Distortion (%)
  • ≤0.002
  • IF (mm)
  • 20

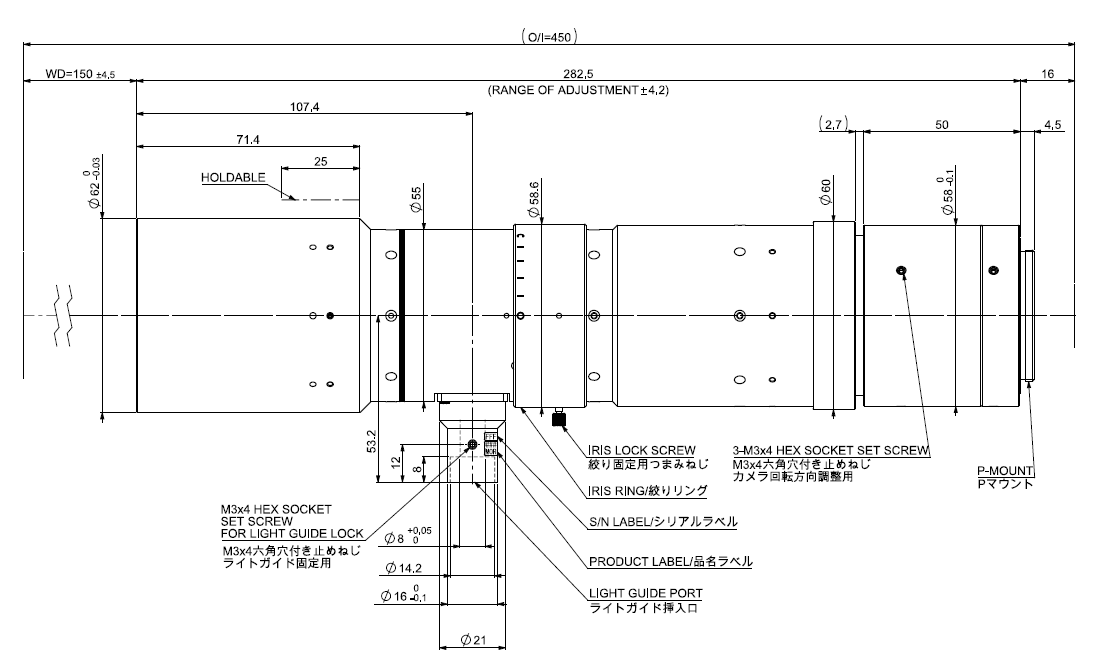

External View
