Telecentric Lens

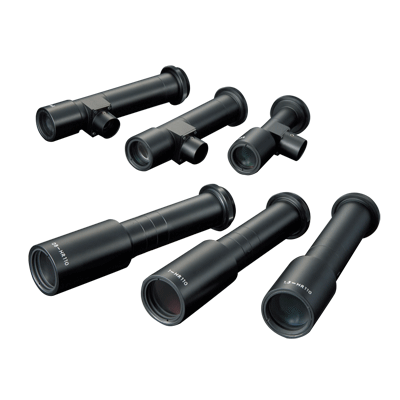

MML4-HR220D

▪ 8 models in 6 types of Magnification
▪ Long WD 220mm~ & High Resolution
▪ Image circle 11mm (2/3 inches)





MML4-HR220D
Download DataDrawing Data
Main Applications
FPD : Glass alignment
Semicon : Wafer alignment, Bonding alignment
Electronics : Parts inspection


Model Description


Specifications
  • Spec
  • MML4-HR220D
  • Coaxial illumination
  • -
  • Magnification
  • 4.0x ± 3%
  • WD (mm)
  • 221.4
  • Resolution (μm)
  • 4
  • Depth of Field (mm)
  • 0.12
  • NA
  • 0.083
  • OI(mm)
  • 419.6
  • Distortion (%)
  • ≤-0.1
  • Image format
  • 11mm (2/3 inches)
  • Mount
  • C Mount

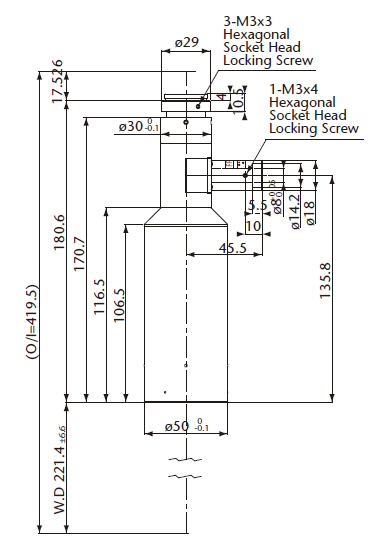

External View
