Telecentric Lens

MML8-HR220D

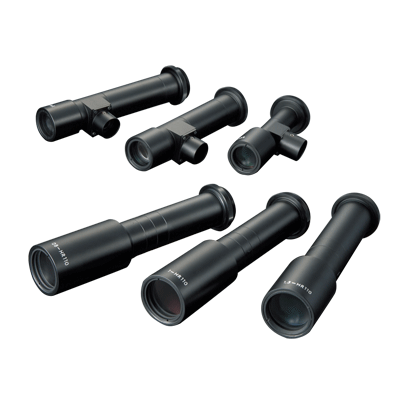

▪ 8 models in 6 types of Magnification
▪ Long WD 220mm~ & High Resolution
▪ Image circle 11mm (2/3 inches)


MML8-HR220D
Download DataDrawing Data
Main Applications
FPD : Glass alignment
Semicon : Wafer alignment, Bonding alignment
Electronics : Parts inspection


Model Description


Specifications
  • Spec
  • MML8-HR220D
  • Coaxial illumination
  • -
  • Magnification
  • 8.0x ± 3 %
  • WD (mm)
  • 220
  • Resolution （μm）
  • 4
  • Depth of Field （mm）
  • 0.06
  • NA
  • 0.083
  • OI（mm）
  • 474.9
  • Distortion （%）
  • ≤- 0.02
  • Image format
  • 11mm (2/3 inches)
  • Mount
  • C Mount

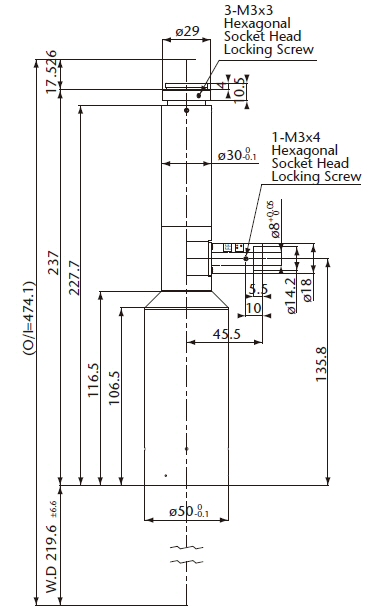

External View
