Telecentric Lens

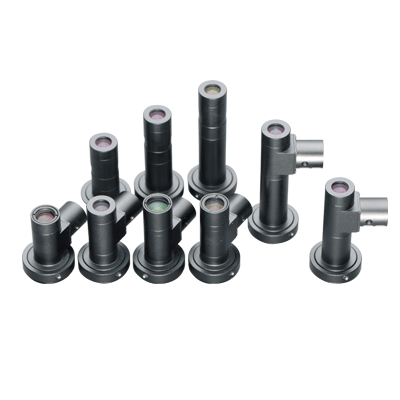

MML1-ST150D

▪ Long working distance and depth of field design
▪ All models are available with uniform coaxial illumination functionality as an option
▪ Very low distortion
▪ CCD Element Size: 1/2" or smaller

Download Data Drawing Data Drawing Data（STEP）

Main Applications

: Alignment

: Component recognition and inspection

Model Description

Specifications

Spec

MML1-ST150D

Coaxial Illumination

-

Magnification

1.00±5%

WD (mm)

156

Resolution (μm)

8.8

Depth of Field (mm)

1.05

NA

0.038

Effective Fno

13

Distortion (%)

0.067

Weight (g)

90

Largest Compatible Sensor

1/2"type

Mount

C Mount

* Depth of field is calculated assuming a horizontal 240TV resolution using a 1/2" CCD camera. (Permissible circle of confusion on the image-formation side: 40μm).
* Resolution values indicate the theoretical resolution at a wavelength of 550nm.

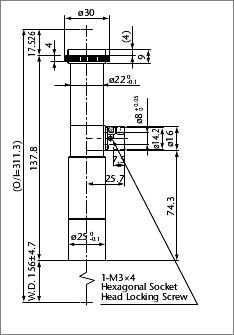

External View
