Telecentric Lens

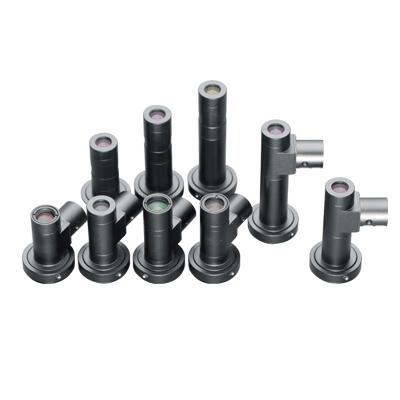

MML08-ST170

▪ Long working distance and depth of field design
▪ All models are available with uniform coaxial illumination functionality as an option
▪ Very low distortion
▪ CCD Element Size: 1/2" or smaller

MML08-ST170
Download DataTechnical DatasheetDrawing Data Drawing Data（STEP）
Main Applications
Alignment
Component recognition and inspection


Model Description


Specifications
  • Spec
  • MML08-ST170
  • Coaxial Illumination
  • -
  • Magnification
  • 0.80±5%
  • WD (mm)
  • 172.9
  • Resolution (μm)
  • 12
  • Depth of Field (mm)
  • 1.79
  • NA
  • 0.028
  • Effective Fno
  • 14
  • Distortion (%)
  • 0.067
  • Weight (g)
  • 76
  • Largest Compatible Sensor
  • 1/2"type
  • Mount
  • C Mount
* Depth of field is calculated assuming a horizontal 240TV resolution using a 1/2" CCD camera. (Permissible circle of confusion on the image-formation side: 40μm).
* Resolution values indicate the theoretical resolution at a wavelength of 550nm.

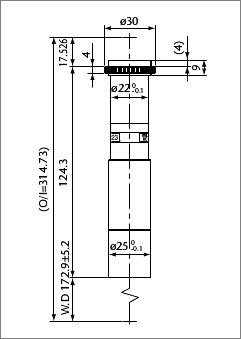

External View
