Telecentric Lens

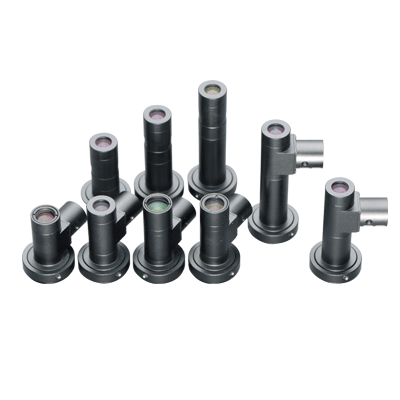

MML05-ST300DVI

▪ Super long working distance and long depth of field design
▪ All models have uniform coaxial illumination functionality
▪ Very low distortion
▪ Variable iris available for most models
▪ CCD Element Size: 1/2" or smaller

MML05-ST300DVI
Main Applications
Alignment
Component recognition and inspection


Model Description


Specifications
  • Spec
  • MML05-ST300DVI
  • Coaxial Illumination
  • -
  • Magnification
  • 0.50±5%
  • WD (mm)
  • 348
  • Resolution (μm)
  • 15.3-37.3
  • Depth of Field (mm)
  • 3.6-8.9
  • NA
  • 0.022-0.009
  • Effective Fno
  • 11.4-27.8
  • Distortion (%)
  • 0.06
  • Weight (g)
  • 200
  • Largest Compatible Sensor
  • 1/2"type
  • Mount
  • C Mount
* Resolution values indicate the theoretical resolution at a wavelength of 550nm.
* Depth of field is calculated assuming a horizontal 240TV resolution using a 1/2" CCD camera. (Permissible circle of confusion on the image-formation side: 40μm).

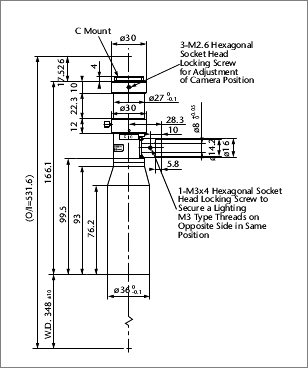

External View
