Telecentric Lens

Specifications

• Spec

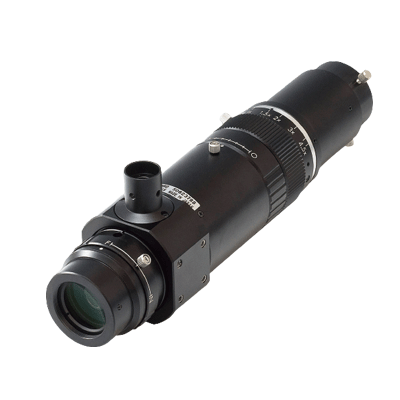

• ML-Z07545HRD

• Zoom Type
• Manual

• Coaxial Illumination
• -

• Magnification
• 0.75-4.5

• WD (mm)
• 70.9

• Resolution (μm)
• 7.5-2.8

• Depth of Field (mm)
• 1.2-0.07

• NA
• 0.04-0.12

• Effective Fno
• 8.4-19

• Distortion (%)
• 0.02

• Weight (g)
• 650

• Largest Compatible Sensor
• 1/2"type

• Mount
• C Mount

* Effective F No indicates designed value when iris is open.
* Calculated based on permissible circle of confusion on the image-formation side:40μm.

ML-Z07545HR Series Converter Lenses

• Model
• Focus Position
• Magnification Range（Low/High）
• WD
• Coaxial lighting

• -
• Near
• 0.75x-4.53x
• 74
• -

• -
• Middle
• 0.75x-4.53x
• 77
• -

• -
• Far
• 0.75x-4.53x
• 80
• -

• ML-Z03HR
• Near
• 0.25x-1.52x
• 140
• Coaxial lighting does not cover the full field of view

• ML-Z03HR
• Middle
• 0.23x-1.36x
• 200
• Coaxial lighting does not cover the full field of view

• ML-Z03HR
• Far
• 0.20x-1.21x
• 237
• Coaxial lighting does not cover the full field of view
