▪ Dedicated near-infrared design (770 nm to 1200 nm) ▪ Telecentric optical system with very little image distortion ▪ High magnification models ▪ Uniform coaxial illumination functionality covering the entire field of view
Main Applications
Wafer void and MEMS inspections
Circuit board detection
Character Recognition
Model Description
Specifications
Spec

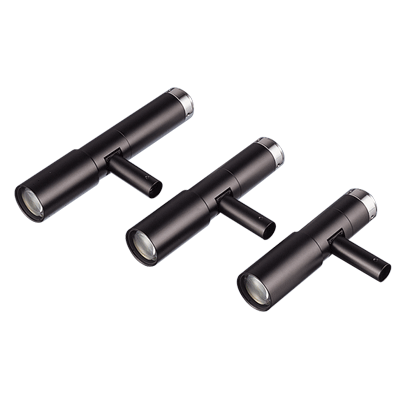

MML8-80D-IR
Coaxial Illumination
-
Magnification
8
WD (mm)
81
Resolution (μm)
4
Depth of Field (mm)
0.027
NA
0.15
Effective Fno
26.9
Distortion (%)
-0.014
Weight (g)
110
Largest Compatible Sensor
2/3" type
Mount
C Mount
* Depth of field is calculated assuming a horizontal 435TV resolution using a 2/3" CCD camera. (Permissible circle of confusion on the image-formation side: 30μ). * Resolution values indicate the theoretical resolution at a wavelength of 985nm.
