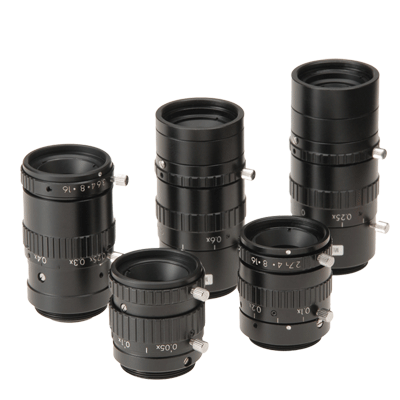

ML-MC35HR

▪ Vibration resistance up to 5G, 10G version optional available
▪ Five models with magnification range from 0.05x to 1.72x (using close-up ring)
▪ Close-up rings can be used to adjust magnification and working distance
▪ Distortion-free, high performance design
▪ Maximum compatible Image format : Diameter 12.8 mm
ML-MC35HR
Download Data Drawing Data Drawing Data（STEP）
Main Applications
External appearance inspection
Alignment
Optical Character Recognition
Specifications
  • Spec
  • ML-MC35HR
  • Focal Distance (mm)
  • 35
  • Magnification
  • x0.25 - x0.7
  • O/I (mm)
  • 211.3 - 137.9
  • WD (mm)
  • 139.8 - 51
  • F No.
  • 3.6 - 16
  • TV Distortion (%)
  • 0.05 or less
  • Image format
  • Diameter 12.8mm
  • Weight (g)
  • 73

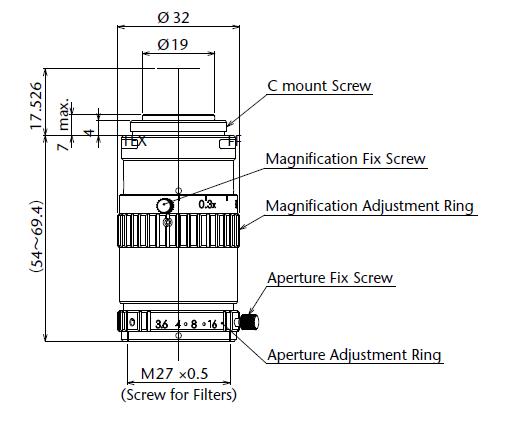

External View

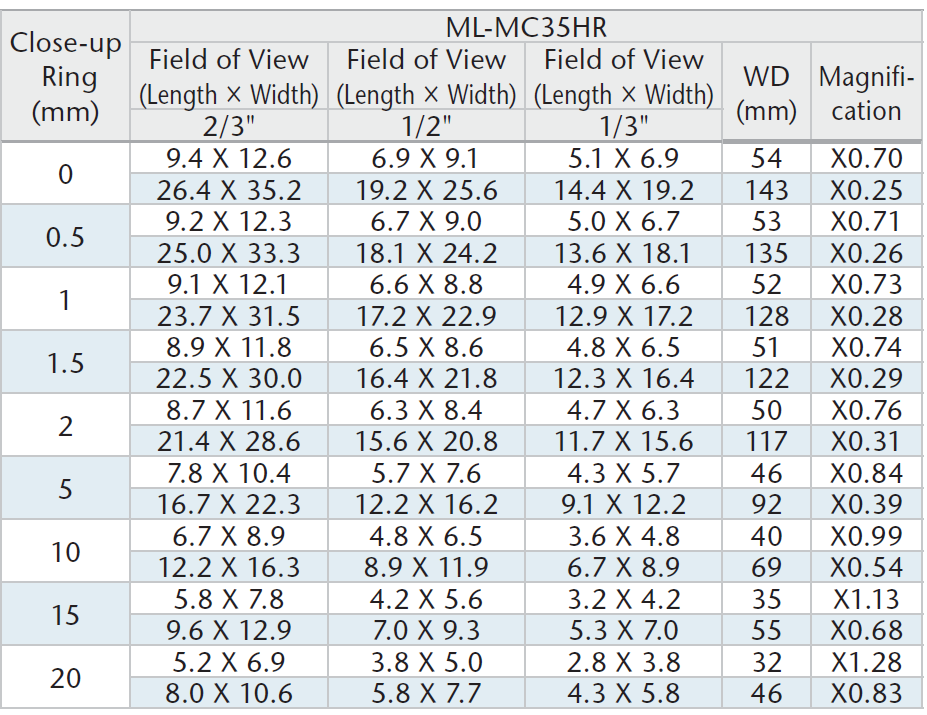

Matrix Chart of Field of View, WD, and Magnification by
Close-Up Ring Lengths
