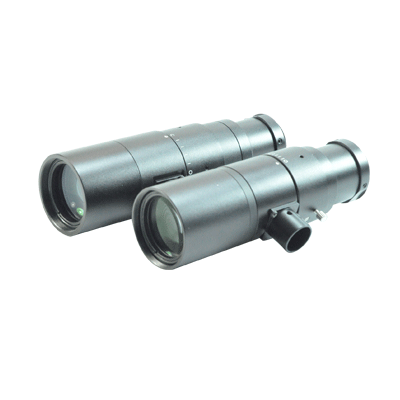

MML0275-SR130VI-18C

▪ The most appropriate optical design for camera pixel size for 2.74µm High resolution design to 12M sensor.

▪ Image format 18.5mm (1.2" sensor)

▪ Adjustable the best depth of field corresponding variable iris.

Download DataDrawing Date Drawing Date（STEP）

Main Applications

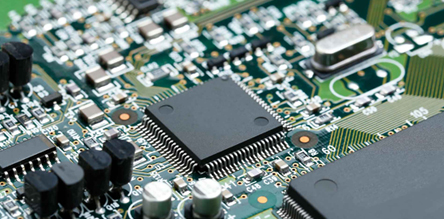

: Electronics : Component and PCB Inspection

: Semi : Wafer inspection

Model Description

Specifications

Spec

MML0275-SR130VI-18C

Magnification x

0.275

WD (mm)

130

Resolution (μm)

19.7 - 55.9

Depth of Field (mm)

8.463 - 25.156

NA

0.017 - 0.006

Effective Fno

8.00 - 23.78

Distortion (%)

0.034

Weight (g)

520

IF (mm)

18.5 (1.1")

Mount

C

* Resolution values indicate the theoretical resolution at a wavelength of 550nm.
* Depth of field is calculated assuming a horizontal 240TV resolution using a 1/2 CCD camera. (Permissible circle of confusion on the image-formation side: 40μm)

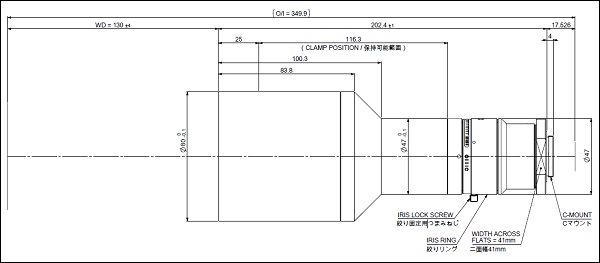

External View
