Macro/CCTV Lens

ML-MC7538HR-1012

▪ Vibration resistance up to 5G, 10G version optional available
▪ Five models with magnification range from 0.05x to 1.72x (using close-up ring)
▪ Close-up rings can be used to adjust magnification and working distance
▪ Distortion-free, high performance design
▪ Maximum compatible Image format : Diameter 12.8 mm
ML-MC7538HR-1012
Download Data Drawing Data Drawing Data（STEP）
Main Applications
External appearance inspection
Alignment
Optical Character Recognition
Specifications
  • Spec
  • ML-MC7538HR-1012
  • Focal Distance (mm)
  • 75
  • Fno
  • 3.8-16
  • IF(mm)
  • 12.8mm/2/3"
  • WD(mm)
  • 158-143
  • Magnification(x)
  • 0.96~1.19
  • TV Distortion (%)
  • <0.05
  • Pixel size/Resolution
  • 3.8um /130lp/mm
  • Filter Thread
  • M27x0.5
  • Dimensions O.D.x Lens tube length (mm)
  • φ32x130
  • Weight(g)
  • 170

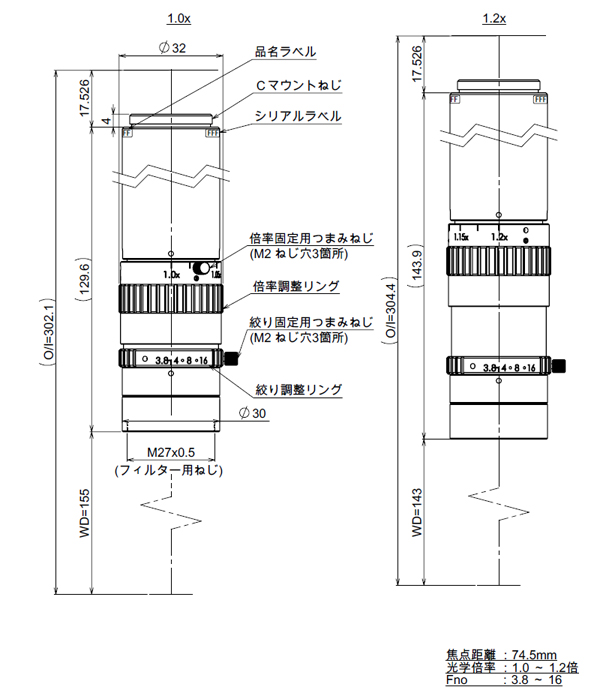

External View
