Macro/CCTV Lens

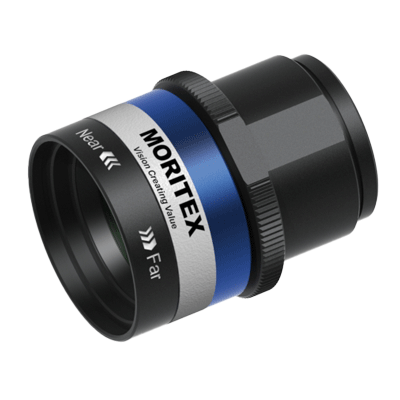

ML-MC1228-18C-G

▪ Compact Design
▪ Vis/NIR AR Coating
▪ Vibration Resistance
▪ High resolving power 150lp/mm,12MP,High resoliution 3.5μm/pixel
▪ Large Format 1.1" compatible
▪ Locking screw method focusing funciton,fixed aperture 4 types available (Fno 2.8,4.0,5.6,8.0)
▪ Optimized for WD 400 - 1,000mm
*1 Coming soon
ML-MC1228-18C-G
Download Data Technical DatasheetDrawing Data （STEP）
Main Applications
Electronics: Component and PCB Inspection
Factory Automation: Food, Glass, Bottle, Pharma, etc.
Automotive: Mechanical Parts Inspection
Model Description
Specifications
  • Model
  • ML-MC1228-18C-G
  • Focal Length (mm)
  • 12
  • Fno
  • 2.8
  • Max.[mm]
  • 17.6mm/1.1"
  • WD[mm]
  • 300-1000
  • Mag.[x]
  • 0.04-0.01
  • TV Distortion[%]
  • <-0.3
  • Pixel/Resolving power
  • 3.5um /150lp/mm
  • Filter thread
  • M46x0.75
  • Outer dia.×Lens tube length[mm]
  • φ48x78.35~78.01
  • Weight[g]
  • 168

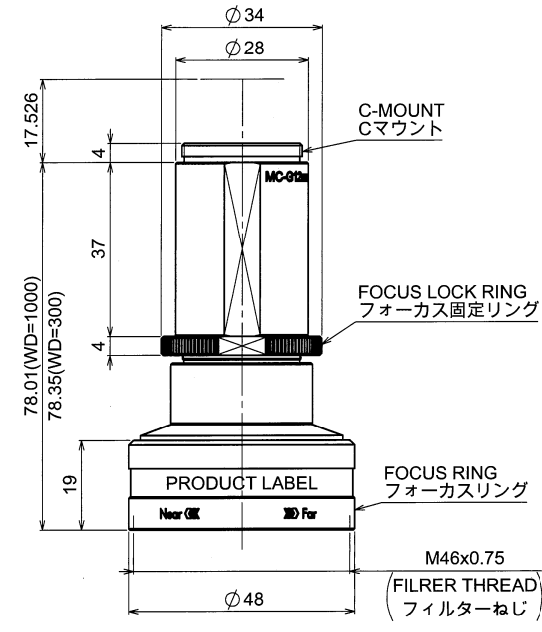

External View
