Macro/CCTV Lens

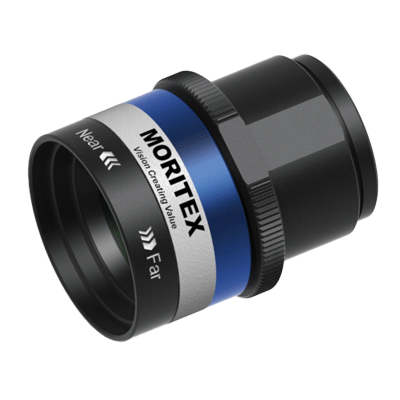

ML-MC3528-18C-G

▪ Compact Design
▪ Vis/NIR AR Coating
▪ Vibration Resistance
▪ High resolving power 150lp/mm,12MP,High resoliution 3.5μm/pixel
▪ Large Format 1.1" compatible
▪ Locking screw method focusing funciton,fixed aperture 4 types available (Fno 2.8,4.0,5.6,8.0)
▪ Optimized for WD 400 - 1,000mm
*1 Coming soon
ML-MC3528-18C-G
Download Data Technical Datasheet Drawing Data Drawing Data（STEP）
Main Applications
Electronics: Component and PCB Inspection
Factory Automation: Food, Glass, Bottle, Pharma, etc.
Automotive: Mechanical Parts Inspection

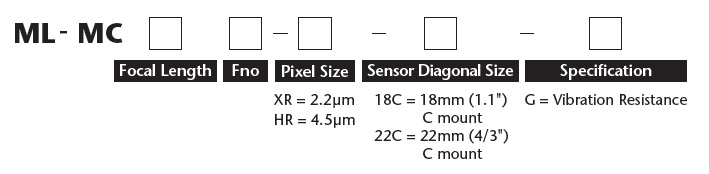

Model Description
Specifications
  • Spec
  • ML-MC3528-18C-G
  • Focal Length (mm)
  • 35
  • Fno
  • 2.8
  • Image Format (mm)
  • 17.6 (1.1 " sensor)
  • Resolving power (lp/mm)
  • Center:150 Margin:100
  • WD(mm)
  • 300 - 1000

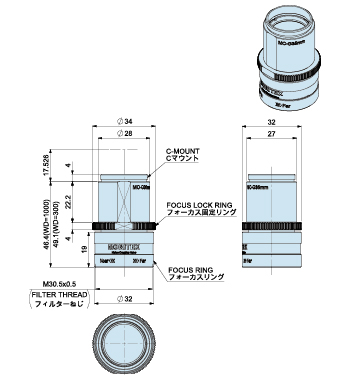

External View
