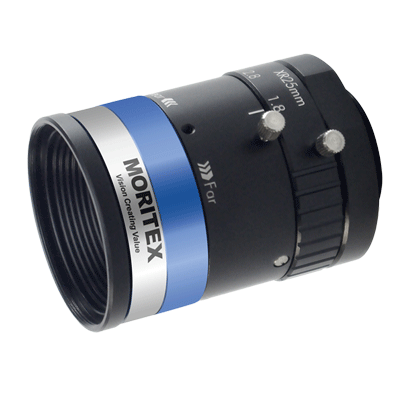

ML-MC2518XR-18C
▪ Compact Design
▪ Vis/NIR AR Coating
▪ Vibration Resistance
▪ High resolving power 200lp/mm,20MP,High resoliution 2.2μm/pixel
▪ Large Format 1.2" compatible
▪ Optimized for WD 200 - 400mm

Download Data Technical Datasheet Drawing Data Drawing Data（STEP）

: Electronics: Component and PCB Inspection

: Factory Automation: Food, Glass, Bottle, Pharma, etc.

: Automotive: Mechanical Parts Inspection

Model Description

Specifications

Spec

ML-MC2518XR-18C

Focal Length (mm)

25

Fno

1.8 - 16

Image Format (mm)

19.3 (1.2 " sensor)

WD(mm)

70 - 400

Magnification(x)

0.06-0.31

TV Distortion(%)

<0.127

Pixel size/Resolution

2.2um/200lp/mm

Filter Thread

M35.5x0.5

Dimensions O.D.x Lens tube length (mm)

φ38x51.2-57.2

Weight(g)

120

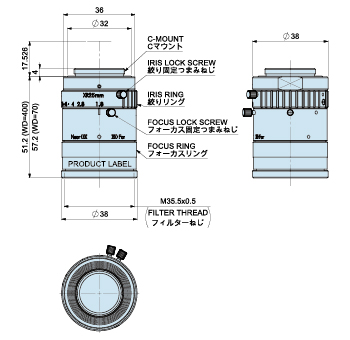

External View
