Macro/CCTV Lens

ML-MC7528XR-18C

▪ Compact Design
▪ Vis/NIR AR Coating
▪ Vibration Resistance
▪ High resolving power 200lp/mm,20MP,High resoliution 2.2μm/pixel
▪ Large Format 1.2" compatible
▪ Optimized for WD 200 - 400mm
ML-MC7528XR-18C
Download Data Technical Datasheet Drawing Data Drawing Data（STEP）
Main Applications
Electronics: Component and PCB Inspection
Factory Automation: Food, Glass, Bottle, Pharma, etc.
Automotive: Mechanical Parts Inspection
Model Description
Specifications
  • Spec
  • ML-MC7528XR-18C
  • Focal Length (mm)
  • 75
  • Fno
  • 28-16
  • Image Format (mm)
  • 19.2mm / 1.2”
  • WD(mm)
  • 500-200
  • Magnification (x)
  • 0.163-0.464
  • TV Distortion (%)
  • <0.035
  • Pixel size/Resolution
  • 2.2um/200lp/mm
  • Filter Thread
  • M37x0.75
  • Dimensions O.D.x Lens tube length (mm)
  • φ40x82.3
  • Weight (g)
  • 235

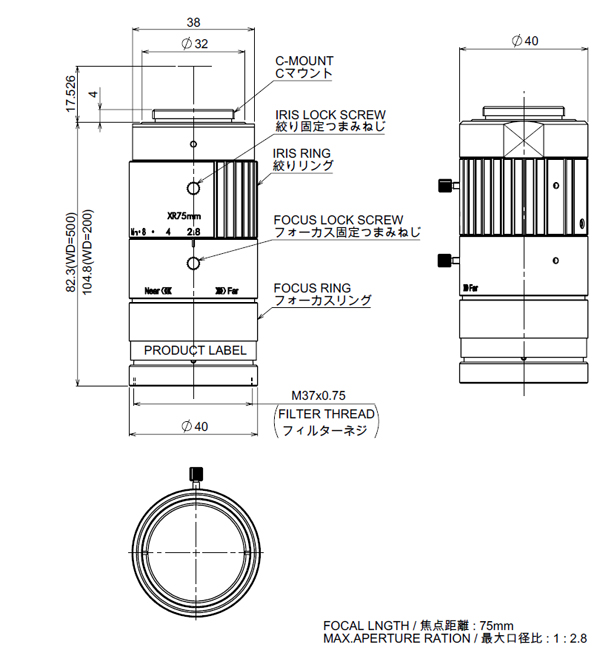

External View
