Macro/CCTV Lens

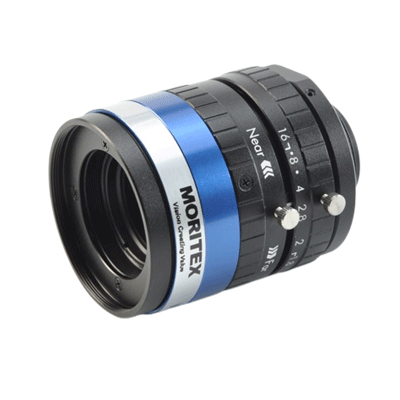

ML-U1217SR-18C

▪ Compact Design
▪ Vis/NIR AR Coating
▪ High resolving power 150lp/mm,12MP,High resolution 3.5μm/pixel
▪ Large Format 1.1" compatible
▪ Floating mechanism for consistent performance
ML-U1217SR-18C
Download Data Technical Datasheet Drawing Data Drawing Data（STEP）
Main Applications
Electronics: Component and PCB Inspection
Factory Automation: Food, Glass, Bottle, Pharma, etc.
Automotive: Mechanical Parts Inspection
Model Description
Specifications
  • Spec
  • ML-U1217SR-18C
  • Focal Length （mm）
  • 12
  • Fno
  • 1.7-16
  • Image format （mm）
  • 17.6 (1.1 " sensor)
  • Resolving power (lp/mm)
  • Center：150　Margin：100
  • Minimum WD(mm)
  • 100

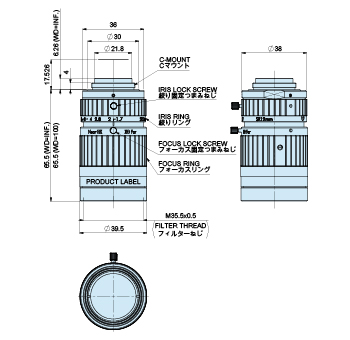

External View
