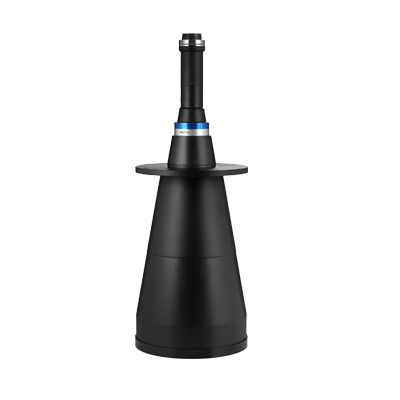

▪ Bi-telecentric lens
▪ High resolution design compatible with 3.5 μm/pixel sensors
▪ 10 FOV types
▪ Inspection data provided for every lens
▪ C Mount : 1-32UNF, FB17.526mm
| Spec | MTL-12011C-009 | |||
|---|---|---|---|---|
| Max IF (mm) | 11 | |||
| FOV type (Φmm) | 120 | |||
| Mag. (x) | 0.092 | |||
| WD (mm) | 255 | |||
| Field of View | 1/3" | H | 4.8 | 52 |
| V | 3.6 | 39 | ||
| D | 6 | 66 | ||
| 1/2" | H | 6.4 | 70 | |
| V | 4.8 | 52 | ||
| D | 8 | 87 | ||
| 1/1.8" | H | 7.1 | 78 | |
| V | 5.3 | 58 | ||
| D | 8.9 | 97 | ||
| 2/3" | H | 8.8 | 96 | |
| V | 6.6 | 72 | ||
| D | 11 | 120 | ||
| Optical specifications | Effective F# | 8.0 | ||
| Distortion | (%) | -0.03 | ||
| Telecentricity | (deg.) | 0.04 | ||
|
Resolution @520nm |
(μm) | 55.7 | ||
|
DOF @40um |
(mm) | 76.7 | ||

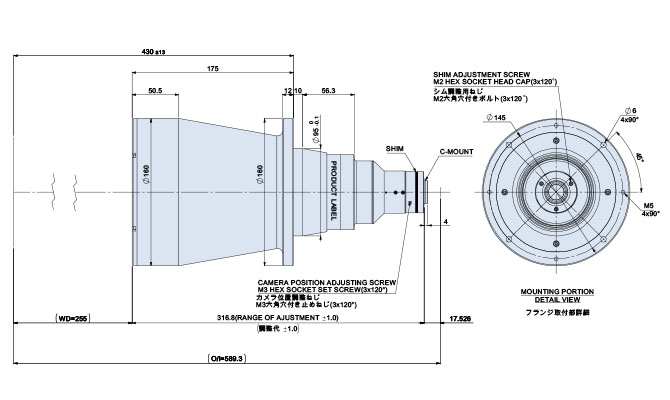

| Mechanical specifications | Front Outer dia. | (Φmm) | 160 | |
| Barrel Length | (mm) | 316.7 | ||
| Weight | (kg) | 3.2 | ||
| Mount | C | |||
