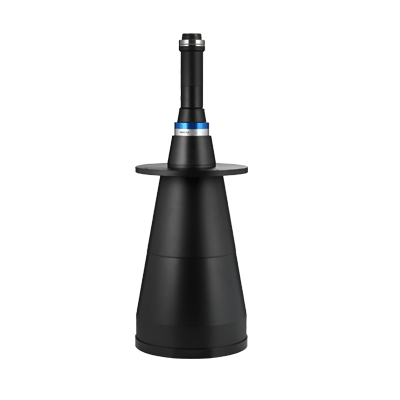

▪ Bi-telecentric lens
▪ High resolution design compatible with 3.5 μm/pixel sensors
▪ 10 FOV types
▪ Inspection data provided for every lens
▪ C Mount : 1-32UNF, FB17.526mm
| Spec | MTL-13511C-008 | |||
|---|---|---|---|---|
| Max IF (mm) | 11 | |||
| FOV type (Φmm) | 135 | |||
| Mag. (x) | 0.081 | |||
| WD (mm) | 260 | |||
| Field of View | 1/3" | H | 4.8 | 59 |
| V | 3.6 | 44 | ||
| D | 6 | 74 | ||
| 1/2" | H | 6.4 | 79 | |
| V | 4.8 | 59 | ||
| D | 8 | 98 | ||
| 1/1.8" | H | 7.1 | 87 | |
| V | 5.3 | 65 | ||
| D | 8.9 | 105 | ||
| 2/3" | H | 8.8 | 108 | |
| V | 6.6 | 81 | ||
| D | 11 | 135 | ||
| Optical specifications | Effective F# | 8.0 | ||
| Distortion | (%) | -0.02 | ||
| Telecentricity | (deg.) | 0.05 | ||
|
Resolution @520nm |
(μm) | 62.6 | ||
|
DOF @40um |
(mm) | 96.9 | ||

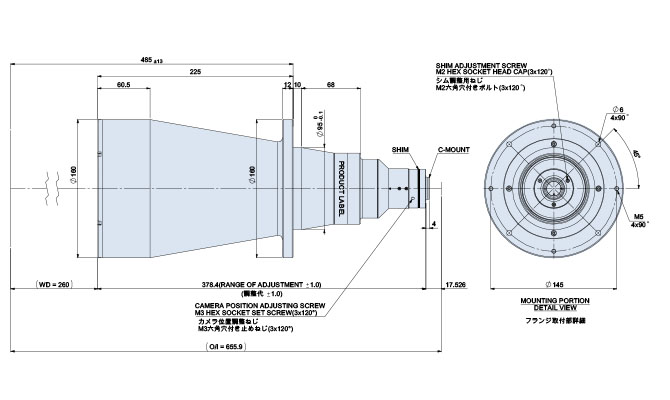

| Mechanical specifications | Front Outer dia. | (Φmm) | 160 | |
| Barrel Length | (mm) | 378.4 | ||
| Weight | (kg) | 3.55 | ||
| Mount | C | |||
