MTL-18011C-006

▪ Bi-telecentric lens
▪ High resolution design compatible with 3.5 μm/pixel sensors
▪ 10 FOV types
▪ Inspection data provided for every lens
▪ C Mount : 1-32UNF, FB17.526mm

Download Data User Manual Drawing Data Drawing Data（STEP）

Main Applications

: Components for electronics
Smartphone components inspections, smartphone assembly inspections, final visual inspections

: Measurement and inspection of high precision components
Automotive parts: cam shafts, engines, catalytic converters, etc.

Model Description

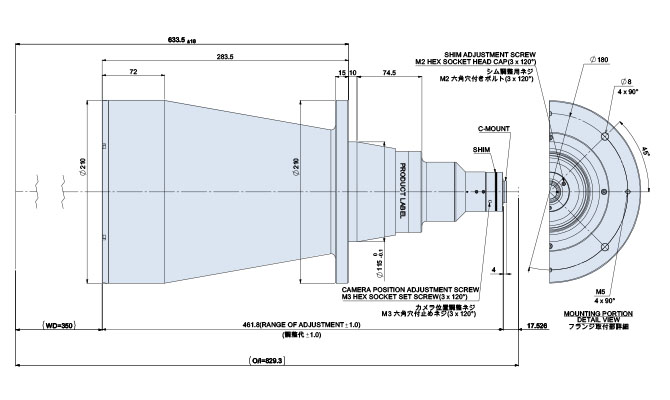

Specifications

Spec				MTL-18011C-006
Max IF (mm)				11
FOV type (Φmm)				180
Mag. (x)				0.061
WD (mm)				350
Field of View	1/3"	H	4.8	79
		V	3.6	59
		D	6	98
	1/2"	H	6.4	105
		V	4.8	78
		D	8	131
	1/1.8"	H	7.1	116
		V	5.3	87
		D	8.9	146
	2/3"	H	8.8	144
		V	6.6	108
		D	11	180
Optical specifications		Effective F#		8.0
		Distortion	(%)	0.02
		Telecentricity	(deg.)	0.05
		Resolution @520nm	(μm)	83.5
		DOF @40um	(mm)	172.1
Mechanical specifications		Front Outer dia.	(Φmm)	210
		Barrel Length	(mm)	461.8
		Weight	(kg)	7.09
		Mount		C
