Bi-Telecentric Lens/Illumination

MTL-4518C-041

▪ Bi-telecentric lens
▪ High resolution design compatible with 3.5 μm/pixel sensors
▪ 15 FOV types
▪ Inspection data provided for every lens
▪ C Mount : 1-32UNF, FB17.526mm

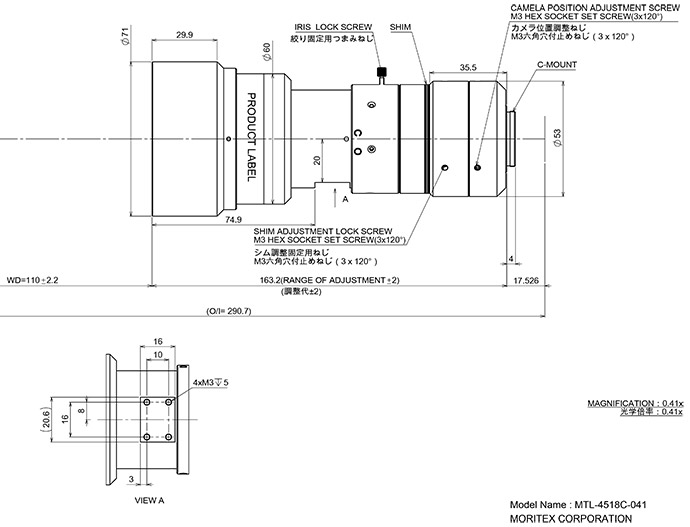

Download Data User Manual Drawing Data Drawing Data（STEP）

Main Applications

: Components for electronics关
Smartphone components inspections, smartphone assembly inspections, final visual inspections

: Measurement and inspection of high precision components
Automotive parts: cam shafts, engines, catalytic converters, etc.

Model Description

Specifications

Spec				MTL-4518C-041
Max IF (mm)				18.5
FOV type (Φmm)				45
Mag. (x)				0.410
WD (mm)				110
Field of View	1/2"	H	6.4	16
		V	4.8	12
		D	8	20
	1/1.8"	H	7.1	17
		V	5.3	13
		D	8.9	22
	2/3"	H	8.8	21
		V	6.6	16
		D	11	27
	1.1"	H	14.1	34
		V	10.3	25
		D	18.1	43
Optical specifications		Effective F#		8.0
		Distortion	(%)	-0.04
		Telecentricity	(deg.)	0.05
		Resolution @520nm	(μm)	12.4
		DOF @40um	(mm)	3.8
Mechanical specifications		Front Outer dia.	(Φmm)	71
		Barrel Length	(mm)	163.2
		Weight	(kg)	0.69
		Mount		C
