Bi-Telecentric Lens/Illumination

MTL-6518C-029

▪ Bi-telecentric lens
▪ High resolution design compatible with 3.5 μm/pixel sensors
▪ 15 FOV types
▪ Inspection data provided for every lens
▪ C Mount : 1-32UNF, FB17.526mm

Download Data User Manual Drawing Data Drawing Data （STEP）

Main Applications

: Components for electronics
Smartphone components inspections, smartphone assembly inspections, final visual inspections

: Measurement and inspection of high precision components
Automotive parts: cam shafts, engines, catalytic converters, etc.

Model Description

Specifications

Spec				MTL-6518C-029
Max IF (mm)				18.5
FOV type (Φmm)				65
Mag. (x)				0.285
WD (mm)				135
Field of View	1/2"	H	6.4	22
		V	4.8	17
		D	8	28
	1/1.8"	H	7.1	25
		V	5.3	19
		D	8.9	31
	2/3"	H	8.8	31
		V	6.6	23
		D	11	39
	1.1"	H	14.1	50
		V	10.3	36
		D	18.1	61
Optical specifications		Effective F#		8.0
		Distortion	(%)	-0.04
		Telecentricity	(deg.)	0.04
		Resolution @520nm	(μm)	17.8
		DOF @40um	(mm)	7.9

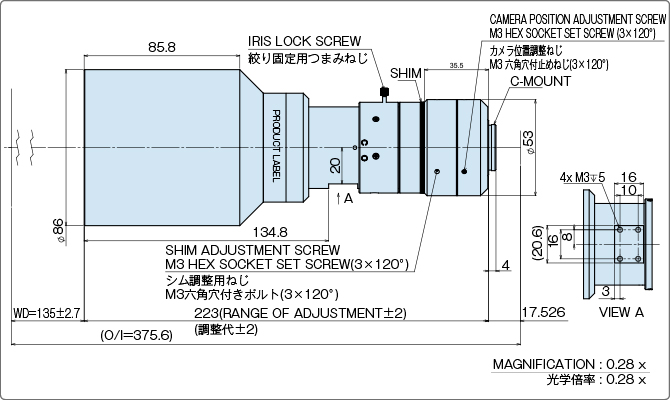

Mechanical specifications		Front Outer dia.	(Φmm)	86
		Barrel Length	(mm)	223.0
		Weight	(kg)	0.85
		Mount		C
